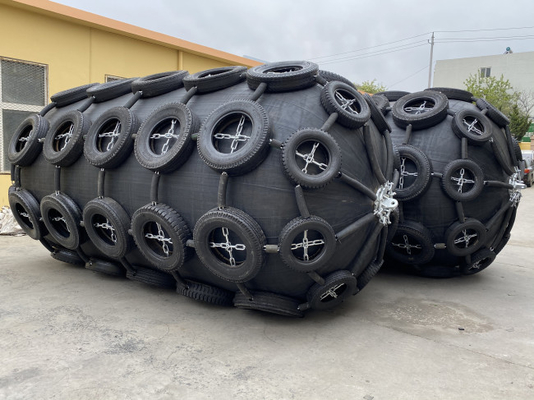

Pneumatic Yokohama Marine Fenders

Pneumatic Yokohama Marine Fenders
Pneumatic Yokohama Marine Fenders Pneumatic Yokohama Marine Fenders

Large Image :  Pneumatic Yokohama Marine Fenders

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001, CCS, BV, SGS
Model Number: SH-PF3
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 200 to 2700/PC
Packaging Details: Nude cargo
Delivery Time: 28 workdays
Payment Terms: T/T
Supply Ability: 300 pcs per month

Pneumatic Yokohama Marine Fenders

Description
Product Name: Ship To Ship Hot Dip Galvanized Fittings Pneumatic Rubber Fenders Sizes: Customized Sizes According To Request
Initial Internal Pressure: 0.05mpa/0.08mpa, 50kpa/80kpa Inner Body Material: Natural Rubber
Reinforcement: Rubber Dipped Tire Cord Fabric Outer Rubber: Natural Rubber
Port: Qingdao Chain Tyre Net: According To The Requirement
High Light:

Ship yokohama marine fenders

,

Pneumatic yokohama marine fenders

,

0.05mpa hot dip galvanized fittings

Ship To Ship Hot Dip Galvanized Fittings Pneumatic Rubber Fenders





Product Introduction:

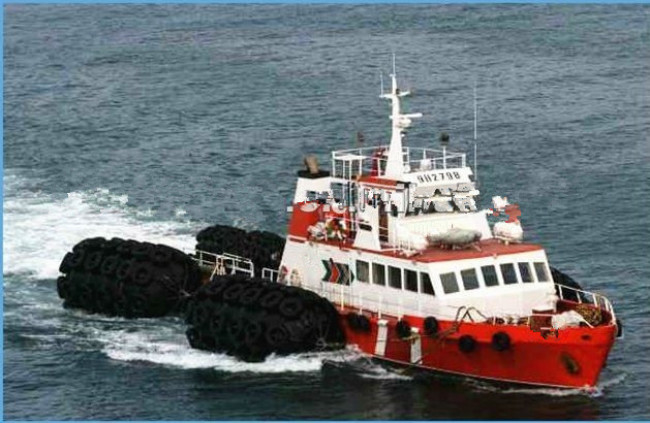

Pneumatic rubber fender is also known as Yokohama type fender. It plays a critical role in the safe operation of ship berthing and mooring. and became the world's leading anti-collision device.It's widely used for ship-to-ship (STS) transfer operations, ship to quay (STQ) operations and ship-to-berthing (STB) operations.



Raw Material



Inner layers is special air sealing layers.

The outer rubber layer is UV-proof and anti-abrasion.

The middle material is rubber layers reinforced with cord net.

All metal parts contacting with sea water such as flanges, bolts, pins etc adopt HDG steel.



Specificaton of Pneumatic Rubber Fender:

Initial internal pressure : 50kPa or 80kPa.



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Pneumatic Rubber Fenders Type



1. Sling Type without chain and tyre net. The weight is lighter and it's easy to operate.

2. Net Type with chain and tyre net , rope and tyre net. rope net

   The outside chain and tyre net provide the extra protction for the rubber fender body.

3. Hydro pneumatic fender.



Notice Of Fender Application And Storage



1.The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.
2.Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.
3.When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender
4.Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.
5.When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.
6.If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.
7.When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.
8.Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution
9.When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.



Production of Pneumatic Rubber Fender:



Pneumatic Yokohama Marine Fenders 0



Pneumatic Yokohama Marine Fenders 1


Pneumatic Yokohama Marine Fenders 2



FAQ:



Q1: What's your MOQ?

Answer: Our MOQ is 1pc.



Q2: What's the lifespan of your pneumatic rubber fenders?

Answer: Designed lifespan of our pneumatic rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you suggest the suitable pneumatic rubber fenders size and quantity for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ABS,CCS,BV,SGS etc.certificate is available
