2000mm Length Submarine Fender

I'm Online Chat Now

2000mm Length Submarine Fender

2000mm Length Submarine Fender
2000mm Length Submarine Fender 2000mm Length Submarine Fender 2000mm Length Submarine Fender

Large Image :  2000mm Length Submarine Fender

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001, CCS, BV, SGS
Model Number: SH-BF1
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 300 to 2600/PC
Packaging Details: Pallet, nude cargo
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 pcs per month

2000mm Length Submarine Fender

Product Name: Diameter 2000mm Length 3500mm Marine Pneumatic Boat Fender Sizes: As Requested
Initial Internal Pressure: 50kpa, 80kpa Material: Rubber , Rubber Dipped Tyre Cord Fabric
Safety Valve: Included Logo: OEM Logo
Guarantee: 2 Years Port: Qingdao
High Light:

2000mm Length Submarine Fender


3500mm Boat Submarine Fender


Pneumatic Marine Rubber Fenders

Diameter 2000mm Length 3500mm Marine Pneumatic Boat Fender



Product Introduction:


Pneumatic boat fender is also known as pneumatic rubber fender,Yokohama type fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's Yokohama fenders used special technilogy and material, makes it to have better performance  .


Yokohama fenders play a critical role in the safe operation of ship berthing and mooring. and became the world's leading anti-collision device.It's widely used for ship-to-ship (STS) transfer operations, ship to quay (STQ) operations and ship-to-berthing (STB) operations.



2000mm Length Submarine Fender 0



Raw Material


Inner layers is special air sealing layers.

The outer rubber layer is UV-proof and anti-abrasion.

The middle material is rubber layers reinforced with cord net.

All metal parts contacting with sea water such as flanges, bolts, pins etc adopt HDG steel.



Safety Valve


Yokohama fenders of diameter 2500mm and larger sizes shall be equipped with a safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which is smaller than 2500mm in diameter can also be equipped with a safety valve if requested.



Advantage of Yokohama Fender:


1. Compliance with ISO 17357: 2014

2. Easy to install and use.

3. Various optional fittings.

4. Cost competitive system

5. Low maintenance cost.

6. Adaptable to the tide.

7. Low reaction and hull pressure.

8. Maintains large clearances between hull and structure.



Specificaton of Yokohama Fender:

Initial internal pressure : 50kPa or 80kPa.


Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa





Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961




Production of Yokohama Fender:


2000mm Length Submarine Fender 1




Yokohama Fender Type


1. Sling Type without chain and tyre net. The weight is lighter and it's easy to operate.

2000mm Length Submarine Fender 2

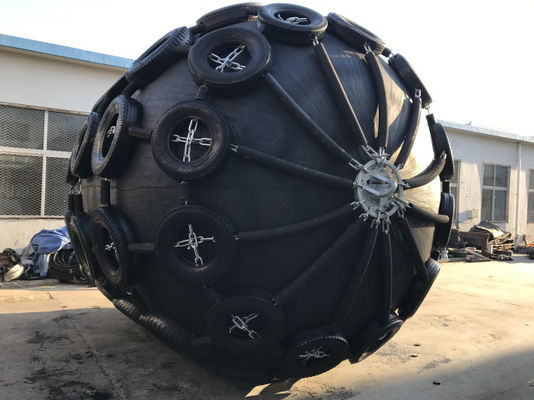

2. Net Type with chain and tyre net , rope and tyre net. rope net

The outside chain and tyre net provide the extra protction for the rubber fender body.


2000mm Length Submarine Fender 3

2000mm Length Submarine Fender 4



3. Hydro pneumatic fender.

2000mm Length Submarine Fender 5





In ports with extreme tidal variations

Ship-to-ship lightering operations

Oil & Gas (typically FSRU)

Temporary bething


2000mm Length Submarine Fender 6


2000mm Length Submarine Fender 7







Q1: What's your MOQ?

Answer: The MOQ of our Yokohama fender is 1pc.


Q2: What's the lifespan of your pneumatic rubber fenders?

Answer: Designed lifespan of our pneumatic rubber fenders is 6 to 10 years


Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.


Q4: Can you suggest the suitable pneumatic rubber fenders size and quantity for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.


Q5: What kind certificate you can provide.

Answer: CCS,BV,SGS etc.certificate is available
