Product Details:
|
| Product Name: | Marine Rubber Floating Boat Docking Ship Launching Airbag | Material: | Natural Rubber ; Rubber Dipped Tyre Cord Fabric |
|---|---|---|---|
| Diameter: | According To The Requirement | Length: | According To The Requirement |
| Accessories: | Free | Usage: | Boat Launcing And Landing |
| Warranty: | 2 Years Without Improper Use | ||
| High Light: | Marine Ship Launching Airbags,Floating Ship Launching Airbags,5 layers boat lift air bags |
||

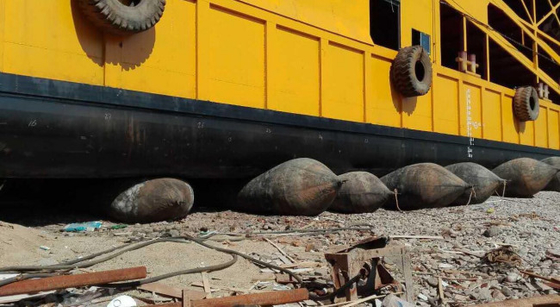

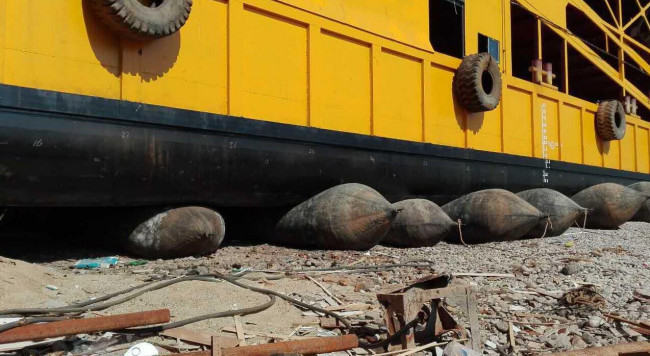

Marine Rubber Floating Boat Docking Ship Launching Airbag
Product Introduction:
Ship launching airbags are known as roller bags, launching air balloons, inflatable marine airbags, air lift bags, and salvage bags. Ship launching airbags are specialized marine rubber air bags that are used for launching marine vessels. ship landing or haul-outs. Marine rubber airbags are also widely used in loading, floating, lifting and moving sunken ships, and salvaging stranded boats. Rubber airbags are made of heavy-duty synthetic-tire-cord layers with inner and out rubber layers in a long cylindrical balloon shape.
The advantageous to using this system over traditional ship launching techniques
An marine airbag ship launching system does not need the traditional fabricated slipway so it saves time, investment, land, etc. Marine airbag need no extra maintenance and after use they can be cleaned and folded in the corner to wait for another mission. It is easy to find that airbags’ elasticity can give more protection to the launched ship. A remarkable character of airbags is that the working height can be changed to redirect the ship or object being launched by adjusting the inner air pressure. For this character it is peerless compared to traditional ship launching techniques.
Advantages of Shunhang Airbags
1. High Bearing Capacity
Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.
Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.
The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.
The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.
2. High Kneading-resistance Capability
When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.
Shunhang improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .
3. New Anti-explosion Design of End Part
The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.
Shunhang invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Shunhang airbag is working very well under higher working pressure without potential safety hazard.
4. High strength galvanized anti-release structure
Casting metal part with chemlok coating.
chemlok coating strengthens the bonding between metal part and rubber body after vulcanization.anti-release structure of the metal part makes the connection more tight.
Specifications:
| Some common sizes of our ship launching airbags, customized sizes are also available | |||
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
As a soft flexible body, airbag’s shape depends on various factors, such as the shape of ship bottom, ramp shape, width of ship bottom, length of airbag, position of airbag under the ship, etc.
Users should calculate the bearing capacity of airbags basing on above factors, correct bearing capacity accordingly.
Caculation of performance of airbags
Formula: Bearing capacity F=PS
P=pressure in the airbag(MPa)
S=contacting area between ship bottom and airbag(M²)
S= π*(D1-D2)/2
Application:
Ship upgrading and launching
For hoisting and transporting heavy structures
For salvaging sunken ship
For floating use purpose
Culvert making for architecture engineering
FAQ:
Q1: The length you marked is effective or total length ?
Answer: All the size we marked is effective length, not include the cone head parts.
2Q: What's the MOQ of your marine rubber airbag?
Answer: Our MOQ is 1pc.
Q3: What's the lifespan of your marine rubber airbag?
Answer: Designed lifespan of our marine rubber airbag is 6 to 10 years
Q4: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q5: What kind certificate you can provide.
Answer: BV,ABS,CCS,SGS etc.certificates are available
Q6: Can you suffest suitable marine rubber airbags size and quantity ?
Answer: We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q7: I want to try your marine rubber airbags, but I don't know how to use, can you help ?
Answer: Yes, we will send instruction book together with the marine rubber airbags.
