Product Details:
|
Product Name: | Lifting Rescue Boat Floating Marine Salvage Airbag | Size: | Customized Sizes |
---|---|---|---|
Material: | Natural Rubber,Nylon Rubber | Layers: | According To The Requirement |
Accessories: | S.S, HDG | Warranty: | 2 Years |
Design Using Life: | 6-10 Years | Standard: | CB/T-3837,ISO14409,CB/T-3795 |
Highlight: | Lifting Rescue Marine Salvage Airbags,Nylon Rubber Marine Salvage Airbags,Floating boat launching airbag |
Lifting Rescue Boat Floating Marine Salvage Airbag
Product Introduction:
The marine salvage airbag is a buoyancy assist airbag made by Qingdao Shunhang Marine Supplies Co., Ltd. according to the demand characteristics of the salvage project. Underwater salvage projects generally have the characteristics of complicated operations, high costs, and strict requirements on equipment and personnel. How can salvage projects save time and effort? Shunhang marine supplies technicians designed this inflatable float-assisting and salvaging airbag after dedicated research.

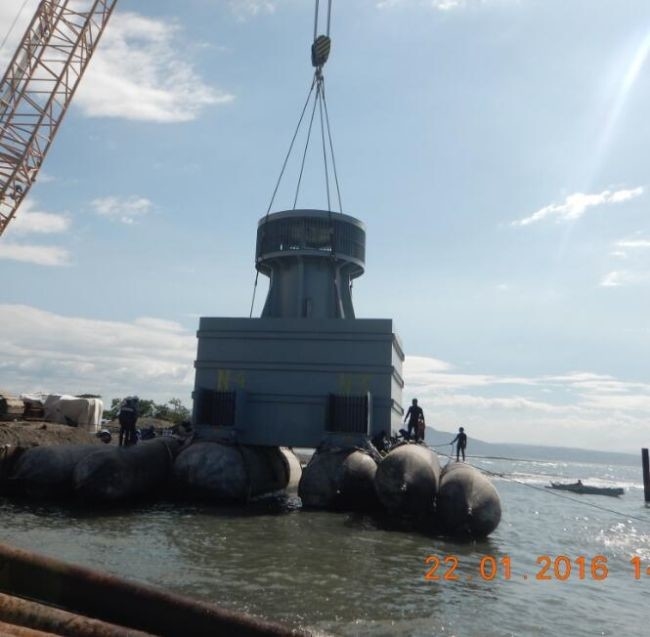

Inflatable buoyancy and salvage airbags have the advantages of light weight, strong air retention performance, deep water pressure resistance and convenient carrying. Therefore, it is widely used in salvage projects such as sunken ship salvage, stranded ship, pontoon bridge, caisson, etc.
The conventional diameter of the airbag can be 0.5m-2.5m, the length can be 5-28m, and the number of layers can be 4-12. Other models can also be produced according to customer needs. The structure of the airbag is composed of the airbag body and the end iron parts. The bladder wall is made of natural rubber and nylon cord fabric through vulcanization; the end iron piece is made of metal material, and the surrounding is tightly combined with the bladder. Each air bag is equipped with a set of inflation valve, pressure gauge, wire connection, tendon pad, wire loop, and wire mouth.
Features of Marine Salvage Airbags
Not easy to be affected to wind and wave.
Less demand of binding.
Easy to meet the needs of buoyancy ranging from 100 tons to 2000 tons.
Easy to transport and store while the airbags are deflated.
Super-high tensile strength owing to its framework material - heavy-duty synthetic-tire-cord layers with breaking strength about more than 15,000 N/ 5cm.
Excellent resistance against abrasion and scratch.
Low maintenance.
High flexibility and cost effectiveness.
Specifications:
Some common sizes of our marine salvage airbags, customized sizes are also available | |||
Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
1.0 | 10 | 5~6 | 0.07~0.10 |
1.0 | 12 | 5~6 | 0.07~0.10 |
1.0 | 15 | 5~6 | 0.07~0.10 |
1.2 | 10 | 5~6 | 0.08~0.12 |
1.2 | 12 | 5~6 | 0.08~0.12 |
1.2 | 15 | 5~6 | 0.08~0.12 |
1.5 | 12 | 5~8 | 0.08~0.16 |
1.5 | 15 | 5~8 | 0.08~0.16 |
1.5 | 18 | 5~8 | 0.08~0.16 |
1.5 | 20 | 4~8 | 0.08~0.16 |
1.5 | 24 | 5~8 | 0.08~0.16 |
1.8 | 12 | 5~8 | 0.08~0.15 |
1.8 | 15 | 5~8 | 0.08~0.15 |
1.8 | 18 | 5~8 | 0.08~0.15 |
1.8 | 20 | 5~8 | 0.08~0.15 |
1.8 | 24 | 5~8 | 0.08~0.15 |
2.0 | 18 | 6~10 | 0.08~0.18 |
2.0 | 20 | 6~10 | 0.08~0.18 |
2.0 | 24 | 6~10 | 0.08~0.18 |
2.5 | 18 | 7~10 | 0.07~0.13 |
2.5 | 20 | 7~10 | 0.07~0.13 |
2.5 | 24 | 7~10 | 0.07~0.13 |
Feature of Shunhang Products:
1. Big carrying capacity
The carrying capacity of the inflating marine rubber airbag is an important indicator of its quality. The CB/T 37951996, The Airbag For The Ships Up To Slipway And Launching, specifies its working pressure and the load-bearing capacities per meter under various compression ratio. Our new generation of airbags are made of novel rubber compounding and high-tension fortifying fiber. Their carrying capacities have been over one times stronger than the standard requirements. That means that less airbags are needed for the ships up to the slipway and launching if with Shun hang marine rubber airbags meanwhile the safe reliability is also guaranteed.
2. High capacity against compression and twisting
When the airbag moves under the ship bottom, it will be compressed between the ship bottom and the ground. As the rolling velocities are not the same among them, they would be torsional deformed. This composite deformation created by both the compression and twisting is described as compressed and twisted movement. When such compression and twisting happens on the air bag, its partial wall would buckle. Then the wall in structure of the multi-layer fortifying fibers would very easily laminate and tear out, resulting the breaking of the fortifying fiber and consequentially the bursting of the entire airbag.
3.New design of anti-bursting construction at the end
For our new generation of airbags, both the rubber compounding and making process are improved so that their structural tearing strengths are improved and so for their capacity for twisting and compression resistance. The deflating possibility would increase at the joint of the end ironwork and the rubber as the working pressure rises.Once it leaks at the end after repeated operation, the end would be more likely to burst out under the high pressure and injure the people.Such accidents due to poor air bag quality have happened many times in the ship launching. We should keep alert on it. To meet the requirement on the air tightness under high internal pressure, the new anti-blasting construction is designed with the end to enhance the binding strength and air tightness at the joint of the bag body and end ironwork. This design could meet the increased working pressure and has been free of the leakage so far in use and proved safe.
Storage of The Airbags
1) If the airbags won’t be used for quite a long time, it shall be washed and dried, filled with talcum powder inside and coated with talcum powder outside, place it in dry, shady and ventilated place in the warehouse.
2) Place string the airbags should be far away from the heat source.
3) The temperature of the warehouse should be kept no more than 30℃.
4) Keep the airbags away from acid, alkali, grease and organic solvent.
5) The airbags should be stretched flat when not used. It is not allowed to pile up and stack heavy object on the airbag.
FAQ:
Q1: The length you marked is effective or total length ?
Answer: All the size we marked is effective length, not include the cone head parts.
2Q: What's your MOQ?
Answer: Our MOQ is 1pc.
Q3: How about the lifespan of your marine salvage airbags?
Answer: Designed lifespan of our marine salvage airbags is 6 to 10 years
Q4: What's your warranty period?
Answer: Our warranty period is 24 monthes. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q5: What kind certificate you can provide.
Answer:CCS BV,etc.certificate is available
Q6: I have ships but don't know how to choose the marine salvage airbags size and quantity, can you help ?
Answer: Don't worry. We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q7: I want to try your marine salvage airbags, but I never use it and don't know how to use, can you help ?
Answer: Yes, we will send instruction book together with the marine salvage airbags.
