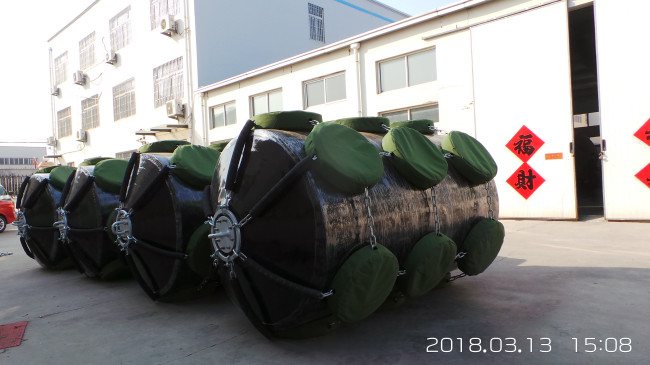

CCS Certified EVA Foam Filled Marine Fenders Boating Floating Polyurethane Fender

                   CCS Certified Boating Floating Protection EVA Foam Filled Fender

Product Introduction

Polyurethane foam filled fender is made of high elastic modulus of new polymerization materials, which has high strength, high elasticity, high adhesion force and the maximum anti-seepage, anti-aging features etc. Polyurethane foam filled fender is mainly choose the closed-cell foam materials as buffered medium to reduce the damage of collision. Currently, Polyurethane foam filled fender produced by Shunang is used very widely in the world, include the port, coastal and ship by ship operation.Polyurethane foam filled fender as a substitute of Pneumatic Rubber fender, which adopting the new coating formular so that the product become more gorgeous and solid. Compared with Pneumatic Rubber Fender, it can using longer time and easy to install in the practices. Polyurethane foam filled fender choose the polyurea material for outer layer and internal using polyurethane foam materials or plastic foam as the cushion medium. It is using compression deformation to absorb the impact energy of the vessels, so that it can help the ship or wharf to reduce the collision damage.

The greatest feature of EVA foam fender is its floating performance, won't be affected by the tidal range.Bright in color, customized colors and sizes are available according to customer's requirement. Compared with pneumatic rubber fender,EVA foam filled fender do not need to inflate when using, it's safe and maintance-free .Connected with flange, easy to install, move and use; It's reaction force grows from a small baginning to a mightly, and has great energy absorption.

EVA foam fenders offers more flexibility as dimensions and performance characteristics can be customized according to type of project and specific requirements. There is no ISO standard as for the pneumatics, but design and manufacturing guidelines are given by PIANC .
As with the rubber fenders the foam fenders can be floating in sea, fixed to quay or hanging from ship side. Different type of application requires different type of solution.

EVA Foam Fender Types:

Chain type
Here we refer to chain type as in chain passing through the EVA foam fender body, with a swivel arrangement at each end allowing the EVA foam fender to rotate during operation.
Typical sizes are from 0.7 diameter and up to 4m, with lengths from 1.2 to 12m.
In addition we can supply foam fenders fitted with chain & tyre net. This will offer additional protection of the coating (outer layer) and foam core.

Steel type
The steel axle EVA foam fenders are designed with connecting flanges and swivels mounted each end, allowing the EVA foam fender to rotate.
Typical sizes are from 0.8 diameter and up to 4m, with lengths from 1.2 to 12m.

PU type
The PU axle EVA foam fenders have no metal parts, which eliminates risk for sparks and damage to hull/ship.
This type is not designed for large sized ships or heavy duty operations.
Sizes: from 0.3 diameter and up to 1m, with lengths from 0.5 to 2m.


Specification of EVA Foam Fender




Feature of EVA Foam Fender

Great Floating Performance, not influenced by tidal waves
Bright Colours are available upon customer request
No air inflation needed (as compared to pneumatic fenders)
High Energy Absorption
Reasonably resistant to acid and alkali
Good Angular Performance
Strong & safe
Extremely long useful life

Application of EVA Foam Fender
