Product Details:
|
| Product Name: | STD Boat Protection Tyre Net Type EVA Foam Filled Fender | Diameter: | Customized Sizes Available |
|---|---|---|---|
| Length: | Customized Sizes Available | Outer Material: | Polyurea Covered |
| Inner: | Good Quality Cell Foam | Chain And Tyre Net: | Customized |
| Flange: | Included | Accessories Material: | Hot Dipped Galvanizing |
| High Light: | STD EVA Foam Filled Fender,Boat Protection Foam Filled Fender,Tyre Net boat mooring fenders |
||

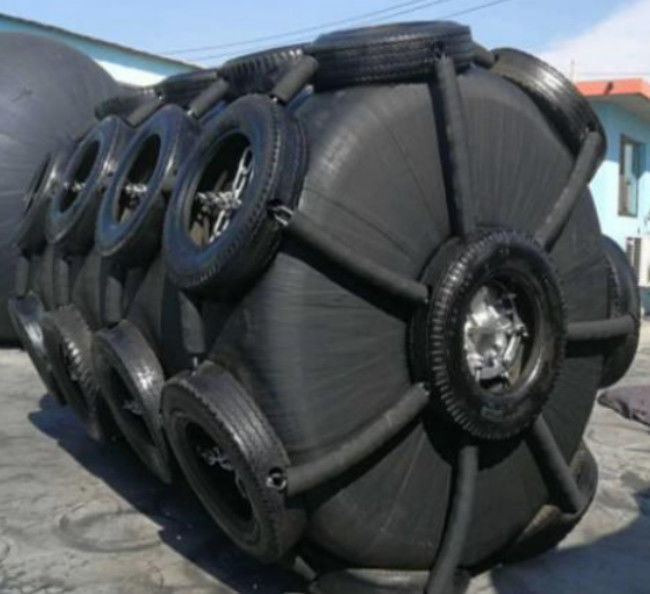

STD Boat Protection Tyre Net Type EVA Foam Filled Fender
Product Introduction
Polyurethane foam filled fender is made of high elastic modulus of new polymerization materials, which has high strength, high elasticity, high adhesion force and the maximum anti-seepage, anti-aging features etc. Polyurethane foam filled fender is mainly choose the closed-cell foam materials as buffered medium to reduce the damage of collision. Currently, Polyurethane foam filled fender produced by Shunang is used very widely in the world, include the port, coastal and ship by ship operation.Polyurethane foam filled fender as a substitute of Pneumatic Rubber fender, which adopting the new coating formular so that the product become more gorgeous and solid. Compared with Pneumatic Rubber Fender, it can using longer time and easy to install in the practices. Polyurethane foam filled fender choose the polyurea material for outer layer and internal using polyurethane foam materials or plastic foam as the cushion medium. It is using compression deformation to absorb the impact energy of the vessels, so that it can help the ship or wharf to reduce the collision damage.
Advantages Of Polyurethane Elastomer
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
EVA Foam Fender Types:
Chain type
Here we refer to chain type as in chain passing through the EVA foam fender body, with a swivel arrangement at each end allowing the EVA foam fender to rotate during operation.
Typical sizes are from 0.7 diameter and up to 4m, with lengths from 1.2 to 12m.
In addition we can supply foam fenders fitted with chain & tyre net. This will offer additional protection of the coating (outer layer) and foam core.
Steel type
The steel axle EVA foam fenders are designed with connecting flanges and swivels mounted each end, allowing the EVA foam fender to rotate.
Typical sizes are from 0.8 diameter and up to 4m, with lengths from 1.2 to 12m.
PU type
The PU axle EVA foam fenders have no metal parts, which eliminates risk for sparks and damage to hull/ship.
This type is not designed for large sized ships or heavy duty operations.
Sizes: from 0.3 diameter and up to 1m, with lengths from 0.5 to 2m.
Specification of EVA Foam Fender
| Size | Compression deflection at 60% | ||
| Diameter /Meter | Length /Meter | Energy Absorption / KJ | Reaction Force / KN |
| 0.5 | 1.0 | 8 | 71 |
| 0.7 | 1.5 | 27 | 161 |
| 1.0 | 1.5 | 49 | 205 |
| 1.0 | 2.0 | 64 | 274 |
| 1.2 | 2.0 | 93 | 337 |
| 1.2 | 2.4 | 110 | 390 |
| 1.35 | 2.5 | 145 | 463 |
| 1.5 | 3.0 | 216 | 624 |
| 1.7 | 3.0 | 273 | 696 |
| 2.0 | 3.5 | 456 | 990 |
| 2.0 | 4.0 | 505 | 1110 |
| 2.2 | 4.5 | 679 | 1396 |
| 2.5 | 4.0 | 781 | 1386 |
| 2.5 | 5.0 | 985 | 1750 |
| 3.0 | 5.0 | 1410 | 2050 |
| 3.0 | 6.0 | 1695 | 2460 |
| 3.3 | 6.5 | 2245 | 2950 |
| 4.5 | 9.0 | 7860 | 19650 |
Feature of EVA Foam Fender
Great Floating Performance, not influenced by tidal waves
Bright Colours are available upon customer request
No air inflation needed (as compared to pneumatic fenders)
High Energy Absorption
Reasonably resistant to acid and alkali
Good Angular Performance
Strong & safe
Extremely long useful life
