Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag

Certification
China QINGDAO SHUNHANG MARINE SUPPLIERS CO., LTD. certification
I'm Online Chat Now

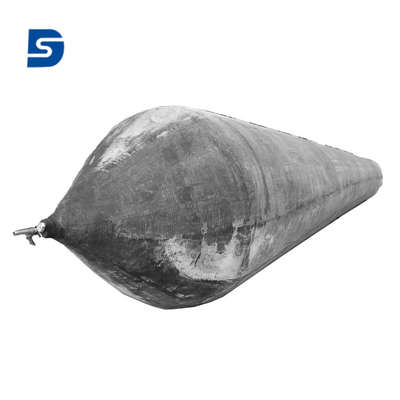

Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag

Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag
Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag

Large Image :  Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001
Model Number: SH-HLA 11
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD500 to 9000/PC
Packaging Details: Pallet
Delivery Time: 5 to 20 workdays
Payment Terms: T/T, , Western Union
Supply Ability: 200 to 260 PCS/Month

Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag

Description
Product Name: Industrial Using 2 Cord Heavy Object Rubber Lifting Airbags Metal Meterial: HDG, Stainless Steel
Diameter: Customized Length: Customized
Warranty: 24 Monthes Without Misuse Rapair Accessories: Included
Application: Boat Docking/ Heavy Object Lifting Business Type: Direct Manufacturer With More Than 20 Years Experience
High Light:

Industrial boat lifting airbags

,

Heavy Object boat lifting airbags

,

2 Cord Rubber boat launching airbag

Industrial Using 2 Cord Heavy Object Rubber Lifting Airbags



Product Introduction:



Rubber lifting airbag is updated based on the ship launching airbags. This update makes heavy lifting airbags are more suitable for heavy lifting and moving work. Heavy lifting airbags have a different structure from the ship launching airbags. It can roll steadily when taking the load.



The rubber lifting airbag is one kind of the toughest inflatable lifting airbag. It can be used for heavy lifting and moving of huge heavy structures, caisson, buildings, etc.



Heavy lifting and transportation relying on heavy lifting airbags are cost-effective and flexible. Heavy lifting airbags will provide you with a unique capability of land transport very large vessels, heavy loads, or heavy construction .



The deflated heavy lifting airbag is very flat and can be placed under a grounded or stranded vessel that is hard aground. As little as 12 inches will provide very quick placement of lifting airbags under the hull.



The structure of Rubber Lifting Airbag:



Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 0

Structure of Rubber Lifting Airbag

1. Terminal iron

2. Cone airbag body

3. Cylindrical airbag body

D: Diameter of airbag

L: Valid length of airbag

Loa: Total length of airba



Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 1



Pipe accessories of air inflation end



1. Iron attachment

2. Tee-joint

3. Pressure gauge

4. Ball valve

5. Hose joint



Specifications of Rubber Lifting Airbags:



Some common sizes of our rubber llifting airbags, customized sizes are also available
Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13



Lifting Capacity



Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 2

The bearing capacity of heavy lifting airbags were calculated based on the working pressure, contact area. Herein, working pressure was got upon the burst pressure and safety working factor.

Because of the flexibility of rubber airbag, the contact area will be effected by some terms. It inludes carried shipcondition, the different position from gravity center during the process of ship launching and landing. So the bvearing capacity of rubber airbags will vary as well as the contact area.

The approximate bearing capacity can be calculate as follows:

F=PS S=π x (D1-D2)/2

Where:

F is the bearing capacity
P is the working pressure
S is the contact area
P is the percentage of deformation (%);
D1 is the original diamater of the airbag (m);
D2 is the height of the compressed airbag (m)



Attention During Application


1. Working pressure must be controlled strictly, it is not allowed to exceed the working pressure.
2. No sharp and protruding hard object on the contacting surface of the airbags, to avoid the puncture on the skin of airbags.
3. Avoid the distortion along the length of airbag.
4. Empty inflating test must be performed if the airbags were not used for a long time or after reparation. The pressure should be as same as the testing pressure of our company. Inspectors must be at least 3 meters away from the airbags. For repaired airbag which was damaged in large scale, its working pressure should be lowered reasonably. Besides, annual check should be conducted on airbags which are used frequently.
5. Don’t drag the airbags on the ground.



Storage of The Airbags


1. If the airbags won’t be used for quite a long time, it shall be washed and dried, filled with talcum powder inside and coated with talcum powder outside, place it in dry, shady and ventilated place in the warehouse.
2. Place string the airbags should be far away from the heat source.
3. The temperature of the warehouse should be kept no more than 30℃.
4. Keep the airbags away from acid, alkali, grease and organic solvent.
5. The airbags should be stretched flat when not used. It is not allowed to pile up and stack heavy object on the airbag.

Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 3



Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 4

Industrial Boat Lifting Airbags 2 Cord Heavy Object Rubber Boat Launching Airbag 5
