Product Details:
|
| Product Name: | Ocean Guard CCS Certified Foam Filled Fender | Net Type: | Chain And Tyre Net, Rope Net |
|---|---|---|---|
| Size: | According To The Requirement | Application: | Berthing Boat Protection, Ocean Platform Protection |
| Outer Material: | Color Polyurea | Inner Material: | EVA Closed Cell Foam |
| OEM: | Available | Swivel: | Included |
| Highlight: | Color Polyurea foam boat fenders,CCS Certified foam boat fenders,EVA ocean guard fenders |
||

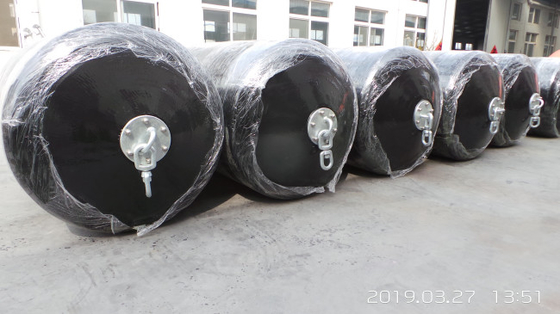

Ocean Guard CCS Certified Foam Filled Fender
Product Introduction
The foam filled fender uses polyurea elastomer and as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
Polyurea elastomer is a new kind synthetic polymer whose performance has both advantages of plastic and rubber. The high strength of plastic and good elasticity of rubber.
Advantages Of Polyurethane Elastomer:
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
Specification of Foam Filled Fender
| Size | Compression deflection at 60% | ||
| Diameter /Meter | Length /Meter | Energy Absorption / KJ | Reaction Force / KN |
| 0.5 | 1.0 | 8 | 71 |
| 0.7 | 1.5 | 27 | 161 |
| 1.0 | 1.5 | 49 | 205 |
| 1.0 | 2.0 | 64 | 274 |
| 1.2 | 2.0 | 93 | 337 |
| 1.2 | 2.4 | 110 | 390 |
| 1.35 | 2.5 | 145 | 463 |
| 1.5 | 3.0 | 216 | 624 |
| 1.7 | 3.0 | 273 | 696 |
| 2.0 | 3.5 | 456 | 990 |
| 2.0 | 4.0 | 505 | 1110 |
| 2.2 | 4.5 | 679 | 1396 |
| 2.5 | 4.0 | 781 | 1386 |
| 2.5 | 5.0 | 985 | 1750 |
| 3.0 | 5.0 | 1410 | 2050 |
| 3.0 | 6.0 | 1695 | 2460 |
| 3.3 | 6.5 | 2245 | 2950 |
| 4.5 | 9.0 | 7860 | 19650 |
Characteristic
● Having the capability of floating, not easily influenced by the ebb and flow of the tide.
● Bright colors. Various colors can be offered according to the customers demands.
● Compared with inflatable fender, it boasts the characteristics if safety and maintenance’ free with working life as long as 15 to 30 years, wanting no inflating, resistant to scarification, pricking, friction, seawater, acid and alkali.
● Solid but light,easy to install and move.
● When compressed to 60%, it’s reaction force grows obviously from little to largeness, and energy absorption is very high.
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
