Product Details:
|
| Product Name: | Boat Mooring SPUA Covered Close Cell EVA Foam Filled Fender | Size: | Customized Sizes Available |
|---|---|---|---|
| Outer Material: | SPUA | Inner: | Cell Foam |
| Flange: | Hot Dip Galvanized | Port: | Qingdao |
| Color: | According To The Requirement | OEM: | Accepted |
| High Light: | Boat Mooring EVA Foam Filled Fender,SPUA Covered EVA Foam Filled Fender,CCS Closed Cell EVA Foam Fender |
||
Boat Mooring SPUA Covered Close Cell EVA Foam Filled Fender
Product Introduction
EVA foam filled fender is also a kind of compressed fender with polyure as outside protective layer, internal with EVA effective foam as buffer medium. Its compression can absorb the ship's reaction force, and the destructive effects on wharf and ships can be reduced.
The greatest feature of EVA foam fender is its floating performance, won't be affected by the tidal range.Bright in color, customized colors and sizes are available according to customer's requirement. Compared with pneumatic rubber fender,EVA foam filled fender do not need to inflate when using, it's safe and maintance-free .Connected with flange, easy to install, move and use; It's reaction force grows from a small baginning to a mightly, and has great energy absorption.
EVA foam filled fenders offers more flexibility as dimensions and performance characteristics can be customized according to type of project and specific requirements. There is no ISO standard as for the pneumatics, but design and manufacturing guidelines are given by PIANC .
As with the rubber fenders the foam fenders can be floating in sea, fixed to quay or hanging from ship side. Different type of application requires different type of solution.
EVA Foam Fender Types:
Chain type
Here we refer to chain type as in chain passing through the EVA foam fender body, with a swivel arrangement at each end allowing the EVA foam fender to rotate during operation.
Typical sizes are from 0.7 diameter and up to 4m, with lengths from 1.2 to 12m.

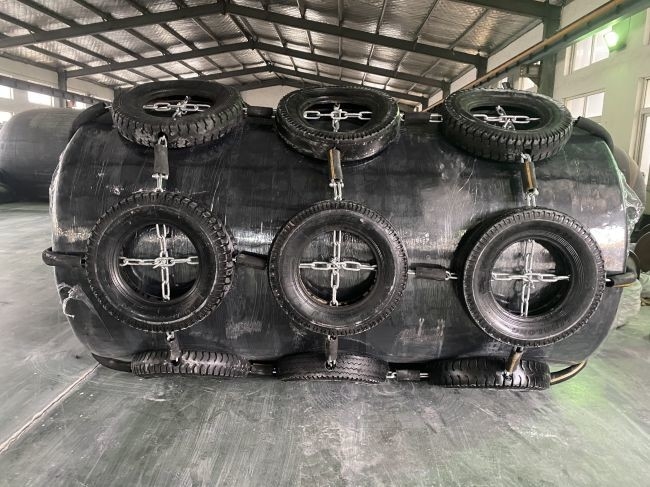

In addition we can supply foam fenders fitted with chain & tyre net. This will offer additional protection of the coating (outer layer) and foam core.
Steel type
The steel axle EVA foam fenders are designed with connecting flanges and swivels mounted each end, allowing the EVA foam fender to rotate.
Typical sizes are from 0.8 diameter and up to 4m, with lengths from 1.2 to 12m.
PU type
The PU axle EVA foam fenders have no metal parts, which eliminates risk for sparks and damage to hull/ship.
This type is not designed for large sized ships or heavy duty operations.
Sizes: from 0.3 diameter and up to 1m, with lengths from 0.5 to 2m.
Specification of EVA Foam Filled Fender
| Size | Compression deflection at 60% | ||
| Diameter /Meter | Length /Meter | Energy Absorption / KJ | Reaction Force / KN |
| 0.5 | 1.0 | 8 | 71 |
| 0.7 | 1.5 | 27 | 161 |
| 1.0 | 1.5 | 49 | 205 |
| 1.0 | 2.0 | 64 | 274 |
| 1.2 | 2.0 | 93 | 337 |
| 1.2 | 2.4 | 110 | 390 |
| 1.35 | 2.5 | 145 | 463 |
| 1.5 | 3.0 | 216 | 624 |
| 1.7 | 3.0 | 273 | 696 |
| 2.0 | 3.5 | 456 | 990 |
| 2.0 | 4.0 | 505 | 1110 |
| 2.2 | 4.5 | 679 | 1396 |
| 2.5 | 4.0 | 781 | 1386 |
| 2.5 | 5.0 | 985 | 1750 |
| 3.0 | 5.0 | 1410 | 2050 |
| 3.0 | 6.0 | 1695 | 2460 |
| 3.3 | 6.5 | 2245 | 2950 |
| 4.5 | 9.0 | 7860 | 19650 |
Feature of EVA Foam Fender
Great Floating Performance, not influenced by tidal waves
Bright Colours are available upon customer request
No air inflation needed (as compared to pneumatic fenders)
High Energy Absorption
Reasonably resistant to acid and alkali
Good Angular Performance
Strong & safe
Extremely long useful life
Application of EVA Foam Filled Fender
