Product Details:
|
| Product Name: | BV Certified Inflatable Yokohama Boat Rubber Fender | Initial Internal Pressure: | 50kpa, 80kpa |
|---|---|---|---|
| Material: | Rubber , Rubber Dipped Tyre Cord Fabric | Accessories: | Inflate Accessories |
| Tyre: | Truck Tyre, Aircraft Tyre | Chain: | Hot Dip Galvanizing, Stainless Steel |
| Color: | Black Color | Warranty: | 24 Monthes |
| High Light: | Yokohama Submarine Fender,BV Certified Submarine Fender,rubber inflatable boat fenders |
||

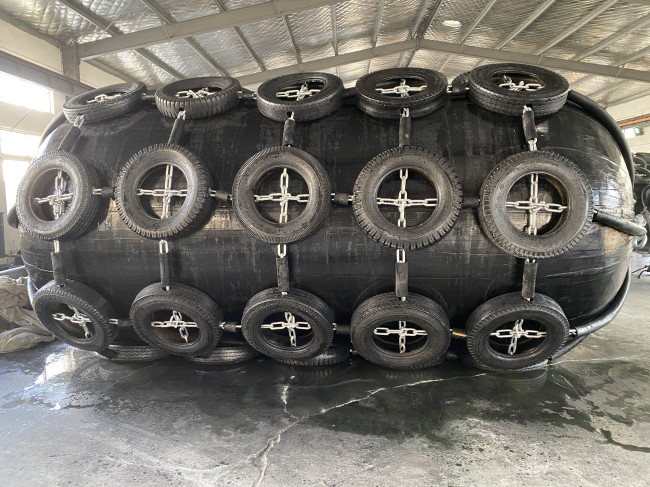

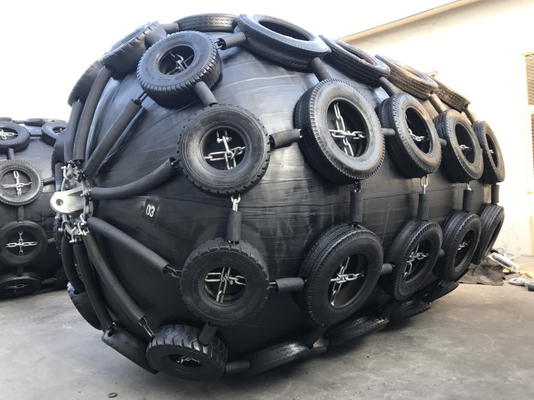

Pneumatic Marine Boat Rubber Fender
Product Introduction:
Boat rubber fender is made of the synthetic-cord-reinforced rubber sheet with compressed air inside. The insider air can enable it to float on the water and work as a shock absorbed between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water.
Feature of Shunhang Boat Rubber Fender:
1.Shunhang pneumatic rubber fenders are designed, manufactured according to ISO17357
2.Technology : Overall winding , Anti high pressure, Explosion proof
Our pneumatic rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.
3.Raw material of our pneumatic rubber fender
Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, rubber ( Some factory use Nylon with less tensile force , and reclaimed rubber ) .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our pneumatic rubber fender are also used in Canada ,Russia etc. After six months, customers’ feedback is our pneumatic rubber fenders are still perform well, there’s no obvious change on the surface.
4.The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre, OTR tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.
5.Designed of our pneumatic rubber fender is 6 to 10 years
6.Our warranty period is 2 years.
Specificaton of Boat Rubber Fender:
Initial internal pressure : 50kPa or 80kPa.
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
|
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
FAQ:
Q1: What's the MOQ of your boat rubber fender ?
Answer: The MOQ is 1pc. Sample order is acceptable.
Q2: What's the lifespan of your boat rubber fenders?
Answer: Designed lifespan of our boat rubber fenders is 6 to 10 years
Q3: How long is your warranty period?
Answer: Our warranty period is 2years.
Q4: Can you help us to recommend suitable boat rubber fenders size and quantity ?
Answer: Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: We can provide ABS, BV, SGS, ABS. etc,
