Product Details:
|
| Product Name: | Air Filled High Pressure Launching / Docking Rubber Marine Airbag | Size: | Customized Sizes Are Available |
|---|---|---|---|
| Application: | Pull The Ship Out Of The Water | Material: | Natural Rubber ; Rubber Dipped Tyre Cord Fabric |
| Design Lifespan: | 10 Years | Color: | Black |
| Inflate Tools: | Included | Repair Tools: | Included |
| High Light: | 24m Air Filled Marine Rubber Airbag,High Pressure Marine Rubber Airbag,18m Docking barge launching airbags |
||
Air Filled High Pressure Launching / Docking Rubber Marine Airbag
Product Introduction:
Marine rubber airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats. Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.
The history of marine rubber airbag dates back to 1981. Xiao Qinghe ship repair and building shipyard, located in Jinan city of Shangdong Province, launched a 60 DWT tank barge with airbag suspension on January 20, 1981. Seven airbags were deployed in that project. One was 2 meters in diameter and 6 meters long and used for elevating. The remaining six airbags were 0.8 meters x 6 meters long and acted as the rollers. The first intention of that trial launch was to develop a prompt, less landform limited ship launching method for warfare purposes.
Technical requirements for marine airbags:
According to CB/T 3795-1996, marine airbags should meet the technical requirements
1. Size deviation
The deviation of diameter and effective length is -2%---+2%,
The deviation of the total length is -4%---+4%
2. Elastic deformation
When using 1.2 times the working pressure as the experimental pressure, the diameter deformation is not more than 5%
3. Safety factor
Safety factor is not less than 4.5
Rubber Marine Salvage Airbags Ship Rescue Airbag ISO14409 0
4. Airtightness
Inflate for 1h, the pressure drop is not more than 5%
5. Appearance requirements
Linear smooth, no cracks and bubbles, heavy skin, mixed impurities and obvious dirt and other visual defects.
6. Safety inflation device
The safety valve should be installed on the capsule, and the trip pressure of the safety valve should be 1.25 times of the working pressure.
Specifications:
| Some common sizes of our ship launching airbags, customized sizes are also available | |||
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Structure of Marine Rubber Airbags :

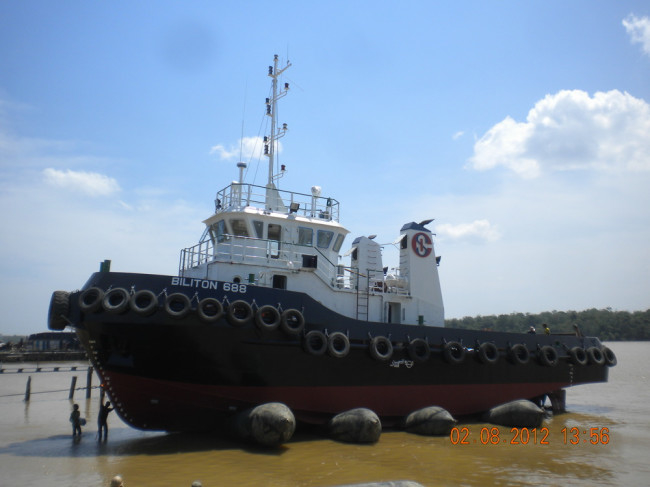

Application of Our Marine Rubber Airbags
FAQ:
Q1: The length you marked is effective or total length ?
Answer: All the size we marked is effective length, not include the cone head parts.
2Q: What's your MOQ?
Answer: Our MOQ is 1pc.
Q3: How about the lifespan of your marine rubber airbags?
Answer: Designed lifespan of our marine rubber airbags is 6 to 10 years
Q4: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q5: What kind certificate you can provide.
Answer: BV, CCS etc.certificate is available
Q6: I have ships but don't know how to choose the marine rubber airbags size and quantity, can you help ?
Answer: Don't worry. We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q7: I want to try your ship launching airbags, but I never use it and don't know how to use, can you help ?
Answer: Yes, we will send instruction book together with the ship launching airbags.
