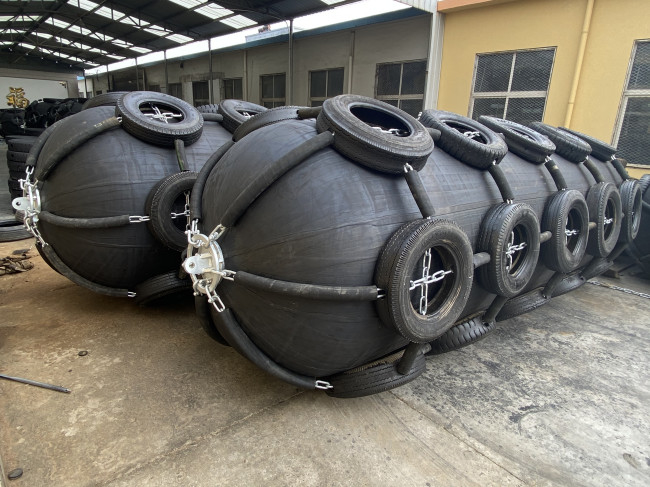

Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders

Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders
Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders

Large Image :  Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001,BV
Model Number: SH-SRF8
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 160 to 7000/PC
Packaging Details: Nylon bag for FCL. Pallet for shipment by LCL
Delivery Time: within 30 days
Payment Terms: T/T-30% in advance , balanec before delivery
Supply Ability: 525 pcs per month

Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders

Description
Product Name: Marine Pneumatic Ship Rubber Fender With Galvanized Accessories Initial Internal Pressure: 50kpa / 80kpa
Color: Black Color Available Standard: ISO 17357-2014
Warranty: 24 Monthes After Delivery From Our Factory Lifespan: 6 To 10 Years
Application: Ship To Ship Protection Advantage: Factory
High Light:

Galvanized Accessories Ship Rubber Fender

,

80kpa Pneumatic Ship Rubber Fender

,

yokohama marine fenders

Marine Pneumatic Ship Rubber Fender With Galvanized Accessories





Product Introduction



Ship rubber fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.



Characteristic



●  External wear resistance ● Bearing pressure



●  Ageing resistance ● Long service life



●  Good air tightness ● Easy storage



●  Non deformation ● Simple installation



Functions & Applications



●  Installed on the wharf and dock for berthing



●  Installed on the shipboard for berthing



●  Float chamber



●  For moving the cargo



Specificaton of Ship Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Outer and Inner Rubber Material Requirements of Ship Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders 0



Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders 1

Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders 2



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our ship rubber fender is 1pc.



Q2: What's the lifespan of your ship rubber fenders?

Answer: Designed lifespan of our ship rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable ship rubber fenders for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: BV, CCS, RS etc.certificate is available



Galvanized Accessories Ship Rubber Fender 80kpa Pneumatic Yokohama Marine Fenders 3
