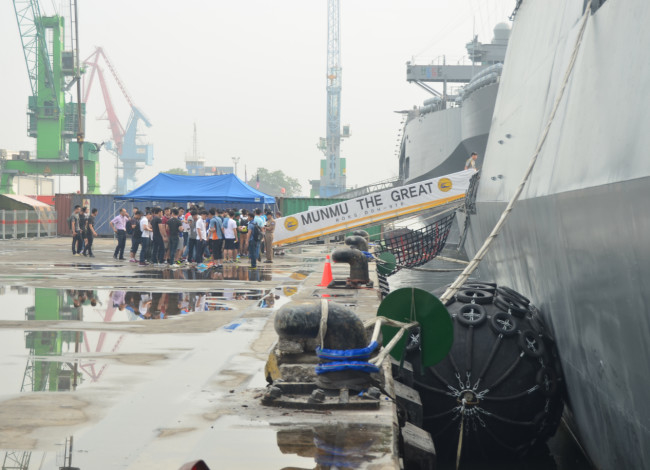

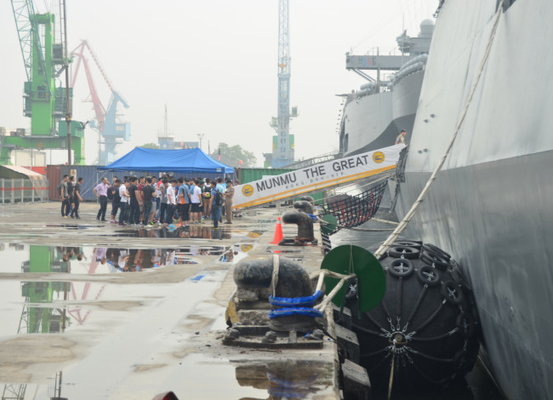

Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa

Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa
Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa

Large Image :  Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: BV Certificate
Model Number: SH-SRF16
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 370 to 8200/PC
Packaging Details: Pallet, nude cargo
Delivery Time: 15 workdays
Payment Terms: T/T-30% deposit, balance before delivery, Western Union, L/C
Supply Ability: 260 pcs per month

Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa

Description
Product Name: 2500mm X 5500mm Pneumatic Rubber Ship Fender Sizes: Customized Sizes Available
Initial Internal Pressure: 0.05mpa / 0.08mpa Material: Rubber Dipped Tyre Cord Fabric, Natural Rubber
Safety Valve: Included Swivel: Included
Inflate Accessories: Inflate Tool, Inflate Hose, Pressure Gauge Net: Chain Tyre Net
High Light:

0.08mpa Pneumatic Ship Rubber Fender

,

2500mm x 5500mm Ship Rubber Fender

,

2500mm x 5500mm pneumatic rubber fenders

2500mm x 5500mm Pneumatic Rubber Ship Fender





Product Introduction:



Rubber ship fender is also known as pneumatic rubber fender,Yokohama type fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's Yokohama fenders used special technilogy and material, makes it to have better performance  .



Rubber ship fenders play a critical role in the safe operation of ship berthing and mooring. and became the world's leading anti-collision device.It's widely used for ship-to-ship (STS) transfer operations, ship to quay (STQ) operations and ship-to-berthing (STB) operations.



Raw Material



Inner layers is special air sealing layers.

The outer rubber layer is UV-proof and anti-abrasion.

The middle material is rubber layers reinforced with cord net.

All metal parts contacting with sea water such as flanges, bolts, pins etc adopt HDG steel.



Safety Valve



Rubber ship fenders of diameter 2500mm and larger sizes shall be equipped with a safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which is smaller than 2500mm in diameter can also be equipped with a safety valve if requested.



Advantage of Rubber Ship Fender:



1. Compliance with ISO 17357: 2014

2. Easy to install and use.

3. Various optional fittings.

4. Cost competitive system

5. Low maintenance cost.

6. Adaptable to the tide.

7. Low reaction and hull pressure.

8. Maintains large clearances between hull and structure.



Specificaton of Yokohama Fender:

Initial internal pressure : 50kPa or 80kPa.



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Pneumatic 50 fender pressure requirements





Nominal size diameter × length mm

Internal pressure Minimum endurable pressure



Safety-valve pressure setting

kPa



Testing pressure at 0 % deflection

kPa

at 0 % deflection kPa at 60 % deflection kPa at 0 % deflection kPa at 60 % deflection kPa
500 × 1 000 50 132 300 462 200
600 × 1 000 50 126 300 441 200
700 × 1 500 50 135 300 473 200
1 000 × 1 500 50 122 300 427 200
1 000 × 2 000 50 132 300 462 200
1 200 × 2 000 50 126 300 441 200
1 350 × 2 500 50 130 300 455 200
1 500 × 3 000 50 132 300 462 200
1 700 × 3 000 50 128 300 448 200
2 000 × 3 500 50 128 300 448 200
2 500 × 4 000 50 137 350 480 175 250
2 500 × 5 500 50 148 350 518 175 250
3 300 × 4 500 50 130 350 455 175 250
3 300 × 6 500 50 146 350 511 175 250



Table 5 — Pneumatic 80 fender pressure requirements





Nominal size diameter × length mm

Internal pressure Minimum endurable pressure



Safety-valve pressure setting

kPa



Testing pressure at 0 % deflection

kPa

at 0 % deflection kPa at 60 % deflection kPa at 0 % deflection kPa at 60 % deflection kPa
500 × 1 000 80 174 480 609 250
600 × 1 000 80 166 480 581 250
700 × 1 500 80 177 480 620 250
1 000 × 1 500 80 160 480 560 250
1 000 × 2 000 80 174 480 609 250
1 200 × 2 000 80 166 480 581 250
1 350 × 2 500 80 170 480 595 250
1 500 × 3 000 80 174 480 609 250
1 700 × 3 000 80 168 480 588 250
2 000 × 3 500 80 168 480 588 250
2 500 × 4 000 80 180 560 630 230 300
2 500 × 5 500 80 195 560 683 230 300
3 300 × 4 500 80 171 560 599 230 300
3 300 × 6 500 80 191 560 669 230 300



Production of Rubber Ship Fender:



Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 0



Rubber Ship Fender Type



1. Sling Type without chain and tyre net. The weight is lighter and it's easy to operate.

Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 1




2. Net Type with chain and tyre net , rope and tyre net. rope net

The outside chain and tyre net provide the extra protction for the rubber fender body.



Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 2


Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 3





3. Hydro pneumatic fender.

Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 4



Application:



In ports with extreme tidal variations

Ship-to-ship lightering operations

Oil & Gas (typically FSRU)

Temporary bething



Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 5Pneumatic Ship Rubber Fender 2500mm X 5500mm Chain Tyre Net 0.05mpa 6





FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our rubber ship fender is 1pc.



Q2: What's the lifespan of your rubber ship fenders?

Answer: Designed lifespan of our rubber ship fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you suggest the suitable rubber ship fenders size and quantity for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: CCS,BV,SGS etc.certificate is available
