Product Details:
|
Product Name: | Shunhang Brand Ship To Ship Yokohama Rubber Fender | Initial Internal Pressure: | 0.05mpa / 0.08mpa |
---|---|---|---|
Production Standard: | ISO 17357-2014 | Warranty: | 2 Years ( Improper Use Is Not Covered By Warranty) |
Lifespan: | 8 Years | Application: | Ship To Ship Protection |
Color: | Black | ||
Highlight: | Shunhang Ship yokohama fender sizes,ISO 17357 yokohama fender sizes,ISO 17357 Black marine dock fender |
Shunhang Brand Ship To Ship Yokohama Rubber Fender
Product Introduction

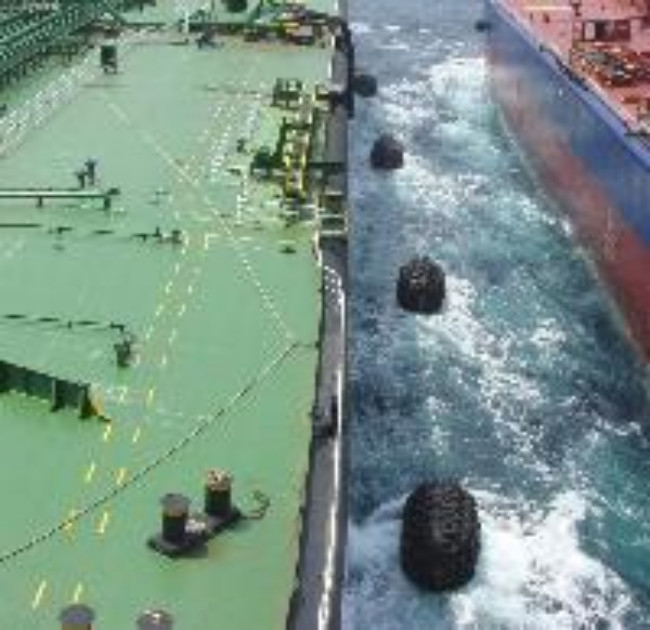

Yokohama rubber fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.
Characteristic
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
Specificaton of Yokohama Rubber Fender
Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
0.5 | 1 | 6 | 64 | 8 | 85 |
0.7 | 1.5 | 17 | 137 | 24 | 180 |
1.0 | 1.5 | 32 | 182 | 45 | 239 |
1.0 | 2.0 | 45 | 257 | 63 | 338 |
1.2 | 2.0 | 63 | 297 | 88 | 390 |
1.5 | 3.0 | 153 | 579 | 214 | 761 |
1.7 | 3.0 | 191 | 639 | 267 | 840 |
2.0 | 3.5 | 308 | 875 | 430 | 1150 |
2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Outer and Inner Rubber Material Requirements of Yokohama Rubber Fenders
Test item |
Test method |
Required value | |
Outer rubber | Inner rubber | ||
1. Before aging | – | – | – |
1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
1.3 Hardness | ISO 7619-1:2010 |
60 ± 10 (Durometer hardness Type A) |
50 ± 10 (Durometer hardness Type A) |
2. After aging |
ISO 188:2011 |
Air oven aging, 70°C ± 1°C, 96 h |
Air oven aging, 70°C ± 1°C, 96 h |
2.1 Tensile strength | ISO 37:2011 |
Not less than 80 % of the original property |
Not less than 80 % of the origi- nal property |
2.2 Elongation | ISO 37:2011 |
Not less than 80 % of the original property |
Not less than 80 % of the origi- nal property |
2.3 Hardness | ISO 7619-1:2010 |
Not to exceed the original prop- erty by more than 8 |
Not to exceed the original prop- erty by more than 8 |
3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test |
ISO 1431-1:2012 |
No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h |
No requirement |
NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. |
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our Yokohama rubber fender is 1pc.
Q2: What's the lifespan of your Yokohama rubber fenders?
Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can you recommend the suitable Yokohama rubber fenders for me?
Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: ISO9001, CCS, BV etc.certificate is available
