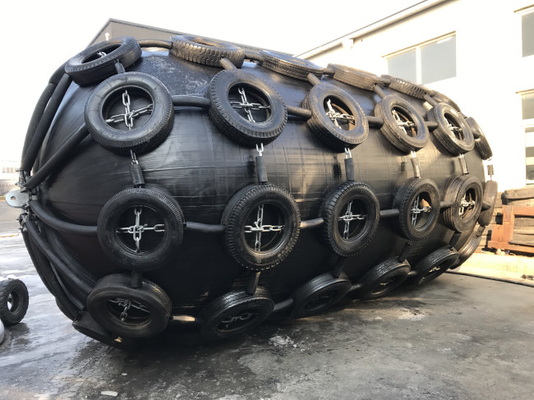

50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock

50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock
50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock

Large Image :  50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: BV, CCS, ISO9001
Model Number: SH-YRF15
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 260to 7000/PC
Packaging Details: Pallet package
Delivery Time: within 15 working days
Payment Terms: Cash, Western Union,, T/T-30$ deposit, balance before delivery
Supply Ability: 260 to 300 pcs per month

50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock

Description
Product Name: Ship To Berthing Certified Yokohama Rubber Fenders Size: Custom Size
Initial Pressure: 50kpa, 80kpa Application: Berthing Ship Protection
OEM: Available Chain Tyre Net: According To The Requirement
Standard: According To ISO17357-2014
High Light:

ISO17357 50kpa Yokohama Rubber Fender

,

Berthing ship protection Yokohama Rubber Fender

,

50kpa 80kpa dock rubber fender

Ship To Berthing Certified Yokohama Rubber Fenders



Features Of Our Yokohama Rubber Fender



*  Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
*  Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
*  Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
*  Comprehensively tested for material and hydrostatic pressure irregularities
*  Correctly evaluated for angular and durability performance

*  Clearly marked with all relevant identification

*  Complete with up- to -date certification



Unique Design of Shunhang Yokohama Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Shunhang flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Shunhang casting flange improves 40% higher than traditional type.



Specificaton of Yokohama Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Outer and Inner Rubber Material Requirements of Yokohama Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Characteristic



●  External wear resistance ● Bearing pressure



●  Ageing resistance ● Long service life



●  Good air tightness ● Easy storage



●  Non deformation ● Simple installation



Notice Of Fender Application And Storage


1. The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.
2. Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.
3. When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender
4. Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.
5. When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.
6. If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.
7. When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.
8. Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution
9. When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our Yokohama rubber fender is 1pc.



Q2: What's the lifespan of your Yokohama rubber fenders?

Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable Yokohama rubber fenders for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: CCS, BV, RS etc.certificate is available



50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock 050kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock 1

50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock 2



50kpa 80kpa Yokohama Rubber Fender Berthing Ship Protection Dock 3
