Product Details:
|
| Product Name: | Good Performance Boat Docking Protection Ship Rubber Fenders | Part: | Chain And Tyre Net |
|---|---|---|---|
| Diameter: | 300 To 3700mm | Length: | 500 To 10000mm |
| Technology: | High Pressure,Explosion Proof. Whole Wrapping Technology | Function: | Protect Ship From Collission |
| Swivel: | Included | Chain And Tyre Net: | Included |
| High Light: | Tyre Net Ship Rubber Fender,500mm length Ship Rubber Fender,500mm Docking pneumatic marine fenders |
||

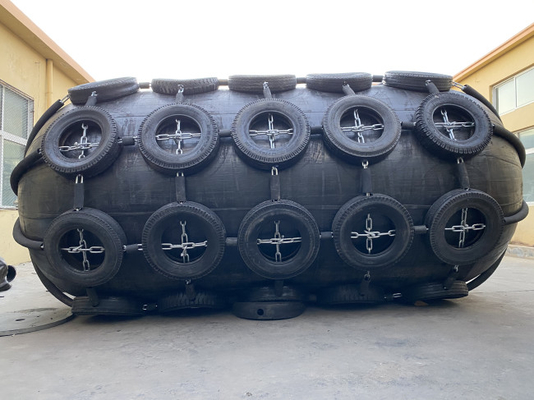

Good Performance Boat Docking Protection Ship Rubber Fenders
Product Introduction

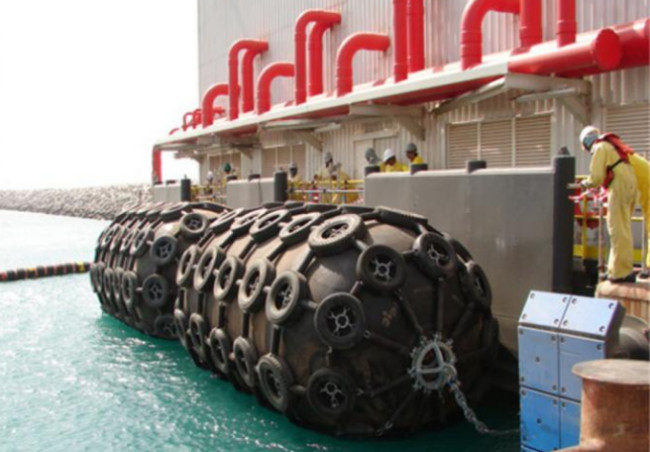

Ship rubber fender is an upgraded product of boat fender widely used worldwide, which is filled with high pressure air to withstand berthing impacts. Compared with normal elastic rubber fenders (such as waste tires, solid rubber fenders, etc.), it has high guaranteed energy absorption, low surface impact, combining high abrasion resistance with low friction and quick installation. Since its application, pneumatic rubber fender has been used as a buffer due to its high performance, and it has been widely used in ship-to-ship operation and ship-to-jetty operation.
Advantage of Ship Rubber Fender
1. Most Cost Competitive System
The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Pneumatic Rubber Fenders ideal. The surface pressure of the Inflatable Rubber Fenderis equal to the internal air pressure.
Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals.
2. Safety and Reliability
Shunhang Ship Rubber Fender are constructed of several layers of rubber dipped tire-cord fabric, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
3. Lower Mooring Forces under Rough Weather Conditions
The reaction force and deflection of Ship Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Ship Rubber Fenders safely protect ships and mooring facilities even under rough weather.
4. Soft Reaction Force for Ship and Jetty Structure
The reaction force of Shunhang Ship Rubber Fender does not increase sharply, even under excess load conditions. Therefore, the Henger Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.
5. Advantages at Inclined Berthing
Shunhang Ship Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.
Specificaton of Ship Rubber Fenders
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
|
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Structure of our Ship Rubber Fenders
Ship Rubber Fender Production Process
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our ship rubber fender is 1pc.
Q2: What's the lifespan of your ship rubber fenders?
Answer: Designed lifespan of our ship rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can you recommend the suitable ship rubber fenders for me?
Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: BV, CCS, RS etc.certificate is available
