Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders

Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders
Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders

Large Image :  Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: BV, SGS, CCS
Model Number: SH-MRF8
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 6000/PC
Packaging Details: Nude packing
Delivery Time: within 25 working days
Payment Terms: T/T, Western Union
Supply Ability: 400 pcs per month

Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders

Description
Product Name: ISO17357 Standard Floating STS Marine Rubber Fenders Size: According To The Request
Initial Internal Pressure: 50kpa, 80kpa Warranty: 2 Years Without Improper Use
Technology: Anti-explosion Type. Whole-wrapping Technology Application: STS, STD Boat Protection
Chain Tyre Net: According To The Requirement Standard: According To ISO17357-2014
High Light:

STD boat Floating Sling Fender

,

STS Marine Sling Fender

,

ISO 17357 pneumatic marine fenders

ISO17357 Standard Floating STS Marine Rubber Fenders



Product Introduction



The marine rubber fender or pneumatic Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.



Features Of Our Maine Rubber Fender



*  Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
*  Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
*  Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
*  Comprehensively tested for material and hydrostatic pressure irregularities
*  Correctly evaluated for angular and durability performance

*  Clearly marked with all relevant identification

*  Complete with up- to -date certification



Unique Design of Shunhang Marine Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Shunhang flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Shunhang casting flange improves 40% higher than traditional type.



Characteristic



●  External wear resistance ● Bearing pressure



●  Ageing resistance ● Long service life



●  Good air tightness ● Easy storage



●  Non deformation ● Simple installation



Specificaton of Marine Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 0

Outer and Inner Rubber Material Requirements of Marine Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 0

Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 2

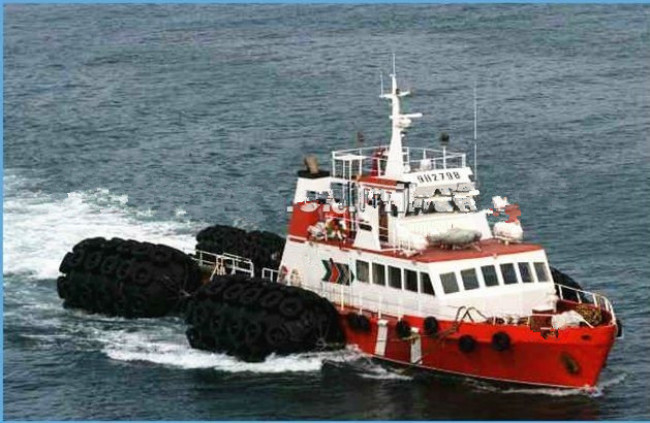

Installation and Application of Marine Rubber Fenders

Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 3Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 4



Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 5Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 6Floating Sling Fender STS ISO17357 Rubber Pneumatic Marine Fenders 7



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our marine rubber fender is 1pc.



Q2: What's the lifespan of your marine rubber fenders?

Answer: Designed lifespan of our marine rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable marine rubber fenders for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ISO9001 CCS, SGS, BV, etc.certificate is available
