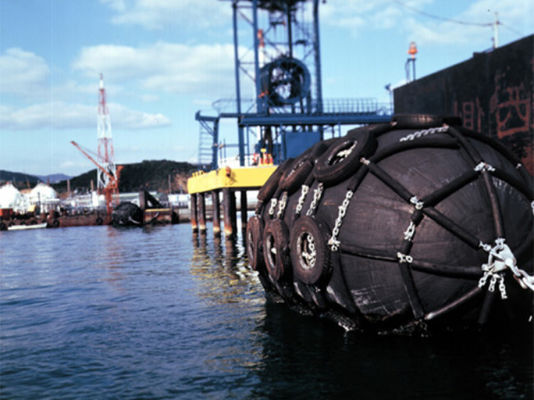

Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types

Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types
Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types

Large Image :  Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types

Product Details:
Place of Origin: China
Brand Name: Shunhang
Model Number: SH-MRF9
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD200 to 6000/PC
Packaging Details: Nylon bag , pallet
Delivery Time: within 15 working days after receiving the advance payment
Payment Terms: T/T-30% deposit in advance, balance paid before delivery
Supply Ability: 500 pcs per month

Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types

Description
Certification: ISO9001, BV, SGS Product Name: Ship To Ship Docking Marine Rubber Fenders Tire Net Type
Initial Internal Pressure: 50kpa / 80kpa ,0.05mpa / 0.08mpa Material: Natural Rubber, Nylon Rubber
Usage: Ship To Ship Protection Warranty: 24 Monthes Without Misuse
Lifespan: 6 To 10 Years Advantage: Experienced Manufacturer
High Light:

4.5m yokohama pneumatic rubber fender

,

Docking yokohama pneumatic rubber fender

,

0.05mpa ship fender types

Ship To Ship Docking Marine Rubber Fenders Tire Net Type





Product Introduction



Marine rubber fender is also known as pneumatic rubber fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's rubber pneumatic rubber fenders used special technilogy and material, makes it to have better performance .



Marine Rubber Fender Types Are Defined As Follows:
1. Type I — Net-type;
2. Type I Single — Net-type and one end with no flange opening and no metal parts.
3. Type II — Sling-type.



Characteristic



●  External wear resistance ● Bearing pressure



●  Ageing resistance ● Long service life



●  Good air tightness ● Easy storage



●  Non deformation ● Simple installation



Specificaton of Ship Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Outer and Inner Rubber Material Requirements of Ship Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 0

Feature of Shunhang Marine Rubber Fenders



1. Shunhang marine rubber fenders are designed, manufactured according to ISO17357


2. Technology : Overall winding , Anti high pressure, Explosion proof

Our marine rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.



3. Raw material of our marine rubber fender

Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, rubber ( Some factory use Nylon with less tensile force , and reclaimed rubber ) .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our pneumatic rubber fender are also used in Canada ,Russia etc. After six months, customers’ feedback is our rubber pneumatic fenders are still perform well, there’s no obvious change on the surface.



4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre, OTR tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.



5. Designed of our marine rubber fender is 6 to 10 years



6. Our warranty period is 24 monthes .



Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 1



Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 2



Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 3Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 4

Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 5



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our marine rubber fender is 1pc.



Q2: What's the lifespan of your marine rubber fenders?

Answer: Designed lifespan of our marine rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable marine rubber fenders for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: BV, SGS, ABS etc.certificate is available



Tire Net Yokohama Pneumatic Rubber Fender Docking 0.05mpa Ship Fender Types 6
