Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001,RS , BV, CCS
Model Number: SH-PYF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 200 to 8200/PC
Packaging Details: Pallet, nude packing
Delivery Time: within 3 weeks
Payment Terms: Telegraphic Transfer- 30% payment in advance, 70% before delivery,, T/T
Supply Ability: 360 to 400 pcs per month

Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size

Description
Product Name: Customized Size Ocean Platform Boat Pneumatic Rubber Yokohama Fender Size: Customized
Initial Internal Pressure: 0.05mpa / 0.08mpa , 50kpa,/ 80kpa Material: Natural Mixed Rubber, Synthetic Tire Cord Layer
Chain Tyre Net: According To The Requirement Color: Black
Inflate Accessories: Free OEM: Accepted
High Light:

Pneumatic Rubber Yokohama Fender

,

Ocean Platform Boat Rubber Yokohama Fender

,

CCS Pneumatic Rubber Fender

Customized Size Ocean Platform Boat Pneumatic Rubber Yokohama Fender



Product Introduction



Pneumatic Rubber Yokohama Fenders is widely used in seaports. Large seagoing vessels use generally no fenders themselves for the mooring in the port. The exception is, for instance, when a bunker boat comes alongside, or when tankers are berthing at sea alongside each other to take over loads. In these situations, pneumatic marine fenders are often used.

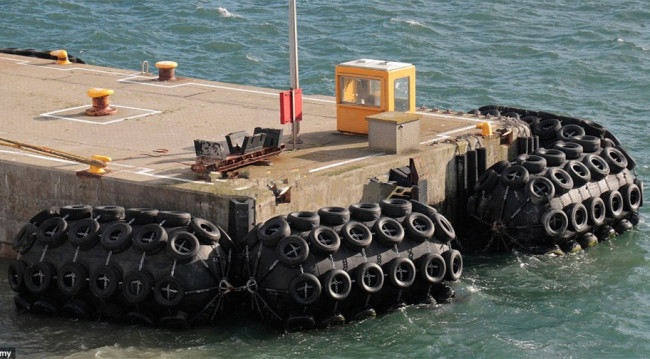

When mooring under rough weather conditions, a ship is subjected to wave action, especially to swell, causing the ship to be moved up and down, back and forth and left to right at the quay. Pneumatic Yokohama  fenders allow gentle initial contact with a gradual increase of reaction force and large allowable deflection, meaning ships and mooring facilities are protected even under rough weather conditions. In light of these advantages, quite a few deep-water ports and large open-sea loading facilities employ pneumatic Yokohama fenders.



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 0

Specificaton of Pneumatic Rubber Yokohama Fender

Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Model Selection of Pneumatic Rubber Yokohama Fender For Small & Middle Size Ship

Ship Tonnage

(T)

Recommendation Size

D X L (m)

Ship Type



50 0.5 x 1.0 Fishing Ship
100 0.7 x 1.5 ~ 1.0 x 1.5 Fishing Ship
200 1.0 x 1.5 ~ 1.2 x 2.0 Fishing Ship, Towing Ship
300-500 1.2 x 2.0 ~ 1.5 x 2.5 Fishing Ship, Towing Ship
1000 1.5 x 2.5 ~ 1.5 x 3.0 Towing Ship, Cargo Ship
3000 2.0 x 3.0 ~ 2.0 x 3.5 Cargo Ship, Ocean Trawler
10000 2.0 x 3.5 ~ 2.5 x 4.0 Cargo Ship



Model Selection of Pneumatic Yokohama Fender For Large-tonnage Ship

Ship Tonnage

(DWT)

Assumed Boarding Speed (M/S) Effective Kinetic Energy (KNM)

Fender Size D x L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5



Features of Pneumatic Rubber Yokohama Fender



1. Safety and Reliability

Pneumatic Rubber Yokohama Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.



2. No Deterioration or Variation in Performance

Pneumatic Rubber Yokohama Fender tilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.



3. Advantages at Inclined Berthing

Pneumatic Rubber Yokohama Fender , energy absorption does not decrease at inclined compression up to 15 degrees.



4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Pneumatic Rubber Yokohama Fender deal. The surface pressure of the Pneumatic Rubber Yokohama Fender is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Pneumatic Rubber Yokohama Fenders are popular at LNG-ship terminals.



5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Pneumatic Rubber Yokohama Fender oes not increase sharply, even under excess load conditions. Therefore, the Pneumatic Rubber Yokohama Fender perform well in such cases, and protect ships and mooring facilities.



6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Pneumatic Rubber Yokohama Fender safely protect ships and mooring facilities even under rough weather.



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 1



Advantage of Shunhang Pneumatic Rubber Yokohama Fender



1. Shunhang pneumatic rubber yokohama fenders are designed, manufactured according to ISO17357


2. Technology : Overall winding , Anti high pressure, Explosion proof

Our marine rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.



3. Raw material of our pneumatic rubber yokohama fenders

Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, rubber ( Some factory use Nylon with less tensile force , and reclaimed rubber ) .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃.After -40℃, 120 hours testing , the tensile strength not changes much and , there is no obvious change in appearance.
Our  pneumatic rubber yokohama fenders are also used in Canada ,Russia etc. After six months, customers’ feedback is our rubber pneumatic fenders are still perform well, there’s no obvious change on the surface.



4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre, OTR tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.



5. Designed of our pneumatic rubber yokohama fenders is 6 to 10 years



6. Our warranty period is 2 years from delivery.



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 2



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 3



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 4



Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 5

Ocean Platform Boat Pneumatic Rubber Yokohama Fender Customized Size 6



Notice Of Fender Application And Storage

1. The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.
2. Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.
3. When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender
4. Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.
5. When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.
6. If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.
7. When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.
8. Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution
9. When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.



FAQ:

Q1: What's your MOQ?

Answer: The MOQ of our pneumatic rubber yokohama fender is 1pc.



Q2: What's the lifespan of your pneumatic rubber yokohama fenders ?

Answer: Designed lifespan of our pneumatic rubber yokohama fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable pneumatic rubber yokohama fenders for me?

Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ISO9001,CCS,BV,SGS,RS etc.certificates are available.



Pneumatic Rubber Yokohama Fender, Yokohama Fender, Inflatable Rubber Fender
