Product Details:
|
Product Name: | Ship To Ship Chain Tyre Net Pneumatic Yokhama Rubber Fender | Sizes Available: | According To The Requirement |
---|---|---|---|
Initial Pressure: | 0.05mpa, 0.08mpa | Standard: | ISO17357-2014 |
Warranty: | 2 Years Since Delivery | Free Accessories: | Inflatable Accessories |
Swivel: | Included | OEM: | Available |
Highlight: | Chain Tyre Net Rubber Fender,Ship Yokohama Rubber Fender,STS Pneumatic Rubber Fender |

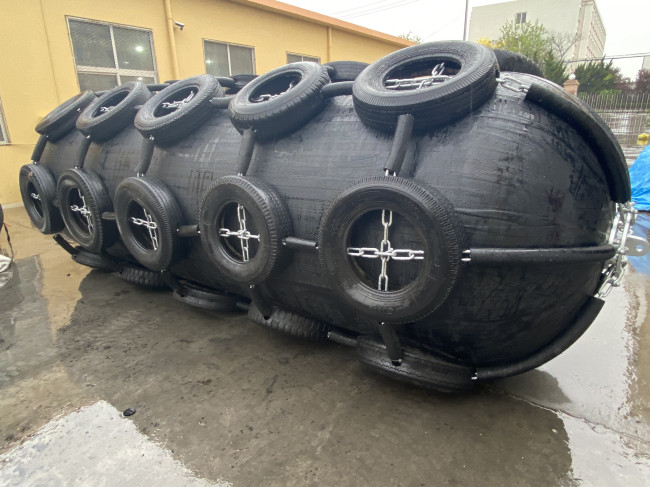

Ship To Ship Chain Tyre Net Pneumatic Yokhama Rubber Fender
Product Introduction
Yokohama rubber fender is also known as pneumatic rubber fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's rubber pneumatic rubber fenders used special technilogy and material, makes it to have better performance .
Specificaton of Yokohama Rubber Fender
Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 80kPa | |||
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
0.5 | 1 | 6 | 64 | 8 | 85 |
0.7 | 1.5 | 17 | 137 | 24 | 180 |
1.0 | 1.5 | 32 | 182 | 45 | 239 |
1.0 | 2.0 | 45 | 257 | 63 | 338 |
1.2 | 2.0 | 63 | 297 | 88 | 390 |
1.5 | 3.0 | 153 | 579 | 214 | 761 |
1.7 | 3.0 | 191 | 639 | 267 | 840 |
2.0 | 3.5 | 308 | 875 | 430 | 1150 |
2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Outer and Inner Rubber Material Requirements of Rubber Pneumatic Fenders
Test item |
Test method |
Required value | |
Outer rubber | Inner rubber | ||
1. Before aging | – | – | – |
1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
1.3 Hardness | ISO 7619-1:2010 |
60 ± 10 (Durometer hardness Type A) |
50 ± 10 (Durometer hardness Type A) |
2. After aging |
ISO 188:2011 |
Air oven aging, 70°C ± 1°C, 96 h |
Air oven aging, 70°C ± 1°C, 96 h |
2.1 Tensile strength | ISO 37:2011 |
Not less than 80 % of the original property |
Not less than 80 % of the origi- nal property |
2.2 Elongation | ISO 37:2011 |
Not less than 80 % of the original property |
Not less than 80 % of the origi- nal property |
2.3 Hardness | ISO 7619-1:2010 |
Not to exceed the original prop- erty by more than 8 |
Not to exceed the original prop- erty by more than 8 |
3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test |
ISO 1431-1:2012 |
No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h |
No requirement |
NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. |
Advantages of Yokohama Rubber Fenders
Advantages During Inclined Berthing
During berthing, the initial contact with the dock is usually at an oblique angle and that places a lot of pressure on both surfaces (the dock and the ship).
For typical solid rubber fenders, at inclined compression which is usually the case, energy absorption decreases considerably. Therefore, it is not unusual to see solid fenders used are larger in sizes. On the other hand, pneumatic fenders’ energy absorption maintains at a relatively high level despite inclined compression. Due to a more evenly distribution of load pressure, the torque performance against the dock is usually smaller when compared to conventionally designed solid fender systems.
Stronger Against Shearing Force
After making contact with the dock, the vessel is usually slowly moved to the optimum mooring position. This action exerts high shearing force and compression on the surface of fenders. Most solid fenders are severely damaged due to such forces as they are not designed to withstand strong shearing forces and friction that way. However, it depends on the designs/types of solid fenders. For example, MAX frontal pads for solid fenders are designed to tackle this issue and protect the fenders from shearing forces, in which the surface of fenders do not make contact with the ship.
Relatively Safe Even During Excess Load
Generally speaking, all fenders should be used within the impact load limit. However in real life situations, it is common to see that fenders often accidentally receive excess loads. When that happens, the fortunate thing about a pneumatic fender is that the reaction force does not increase sharply under excessive load. In contrast, solid fenders’ reaction forces tend to spike sharply under excessive load conditions and damage the ship during the mooring process. This is also helped by pneumatic type fenders’ characteristic that enables a more uniform distribution of stress.
Tide Adaptation
Pneumatic fenders are primarily floating-types, which means the fenders float on the water in an unrestricted vertical plane corresponding to the tidal range and ship’s vertical movement. Therefore, fender energy absorption always take place at the most optimum position.
Notice Of Yokohama Rubber Fender Application And Storage
1.The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.
2.Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.
3.When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender
4.Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.
5.When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.
6.If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.
7.When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.
8.Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution
9.When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.
Shunhang Yokohama Rubber Fender
Inspection of Shunhang Yokohama Rubber Fenders
Usage of Yokohama Rubber Fenders
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our Yokohama rubber fender is 1pc.
Q2: What's the lifespan of your Yokohama rubber fender?
Answer: Designed lifespan of our Yokohama rubber fender is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 24 monthes. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can you recommend the suitable Yokohama rubber fender for me?
Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: ISO9001, CCS, SGS, BV,ABS, RS. etc.certificate is available
