Product Details:
|
| Product Name: | BV Approved Inflatable Floating Rubber Ship Fender With Aircraft Tyre Chain Net | Initial Internal Pressure: | 50kpa, 80kpa |
|---|---|---|---|
| Material: | Natural Mixed Rubber , Rubber Dipped Tire Cord Fabric | Standard: | ISO17357 : 2014-1 |
| Size: | Customized Sizes Available | Inflate Accessories: | Inflate Tool, Pressure Gauge |
| LifeSpan: | 6 To 10 Years | Color: | Black |
| Highlight: | Inflatable Floating Rubber Ship Fender,BV Rubber Ship Fender,Aircraft Tyre Chain Net Fender |
||

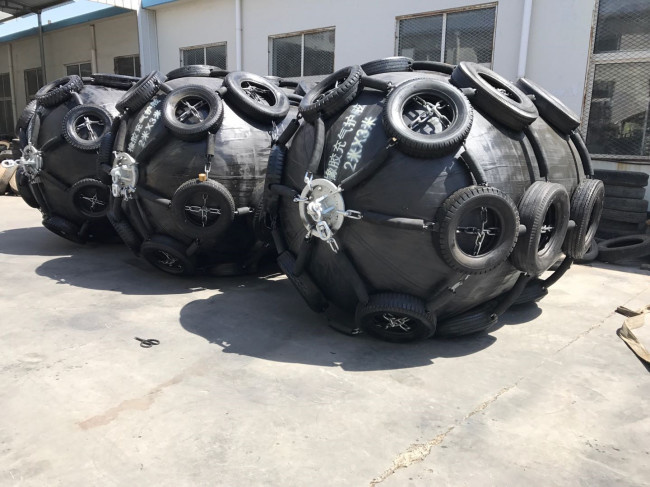

BV Approved Inflatable Floating Rubber Ship Fender With Aircraft Tyre Chain Net
Product Introduction:
Rubber Ship Fender is Designed for sealing and blocking sewers, drainage systems, pipelines, and gullies in which the backpressure exceeds the range of standard stoppers.
1. Outer rubber
Rubber layer that covers the outside of the fender to protect the cord layers and the inner liner rubber from abrasion and other external forces
2. Inner rubber
Liner of a rubber membrane that seals the pressurized air inside the fender
3. Synthetic-tyre-cord layer for reinforcement
Layer made of synthetic-tyre-cord fabric, which maintains the internal air pressure of the fender
Note 1 to entry: As the main fibres of the synthetic-tyre-cord fabric are not braided like synthetic canvas fabric or synthetic belt fabric, there are advantages for its fatigue-resistance performance and pressure-holding performance. .
4. Flange opening
Steel flange which is mounted on the fender, to which an air valve or safety valve can be adapted
5. Guaranteed energy absorption
Energy that the fender can absorb without permanent deformation or failure
6. Reaction force
Force produced by a fender reacting to a compressive force
Note : It is equal to the force of the air pressure of the fender multiplied by the contact area of the fender to the ship or berthing structure.
Specificaton of Rubber Ship Fender:
Initial internal pressure : 50kPa or 80kPa.
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
|
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Shunhang Rubber Ship Fender Inspection Before Delivery
Application:
-- Oil and gas tankers
-- Fast ferries and aluminium vessels
-- Temporary and permanent installations
-- Rapid response and emergencies
FAQ:
Q1: What's your MOQ?
Answer: Our MOQ is 1pc.
Q2: What's the lifespan of your Rubber Ship Fender?
Answer: Designed lifespan of our Rubber Ship Fender is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 24 monthes. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: I have ships but don't know how to choose the Rubber Ship Fender size and quantity, can you help ?
Answer: Don't worry. We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: ISO9001, CCS,BV,SGS etc.certificate is available
