Product Details:
|
| Product Name: | Tyre & Chain Net Type Ship Docking Protection Pneumatic Rubber Fender | Size: | Customized Sizes Available |
|---|---|---|---|
| Initial Internal Pressure: | 50kpa, 80kpa | Material: | Rubber , Rubber Dipped Tyre Cord Fabric |
| LifeSpan: | 6 To 10 Years | Warranty: | 2 Years |
| Standard: | ISO17357-2014 | Usage: | Protects Ship During Ship-to-ship Operations Or Mooring At Quay |
| High Light: | ISO17357 Ship Docking inflatable rubber fender,50kpa Pneumatic inflatable rubber fender,80kpa Chain Net aircraft tyre fender |
||
Tyre & Chain Net Type Ship Docking Protection Pneumatic Rubber Fender
Product Introduction:
Pneumatic rubber fender is also known as Yokohama type fender. It's a leading anti-collision device for marine application in the world today. Pneumatic rubber fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.
Pneumatic rubber fender is manufacturered and tested fully compliant with ISO 17357: 2014,
Pneumatic rubber fenders consist of outer rubber layer, reinforcement synthetic-tyre-cord layers, and inner rubber layer.
● The out rubber are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
● The reinforcement synthetic-tyre-cord layers to maintain the internal air pressure of the fender.
● The inner rubber layer seals the pressurized air inside the fender.
Advantage of Pneumatic Rubber Fender:
1. Compliance with ISO 17357: 2014
2. Easy to install and use.
3. Various optional fittings.
4. Cost competitive system
5. Low maintenance cost.
6. Adaptable to the tide.
7. Low reaction and hull pressure.
8. Maintains large clearances between hull and structure.
Specificaton of Pneumatic Rubber Fender:
Initial internal pressure : 50kPa or 80kPa.
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
|
Diameter/ Meter |
Length /Meter |
Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |

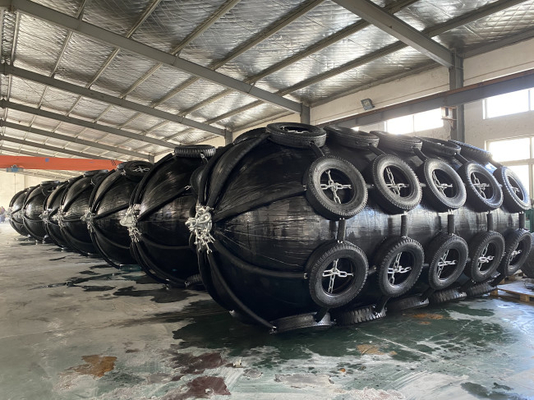

Production of pneuamtic rubber fender:

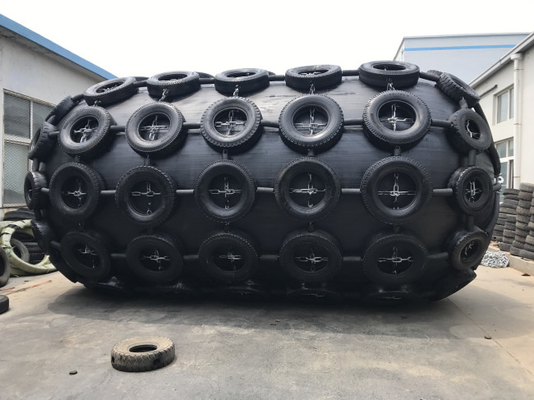

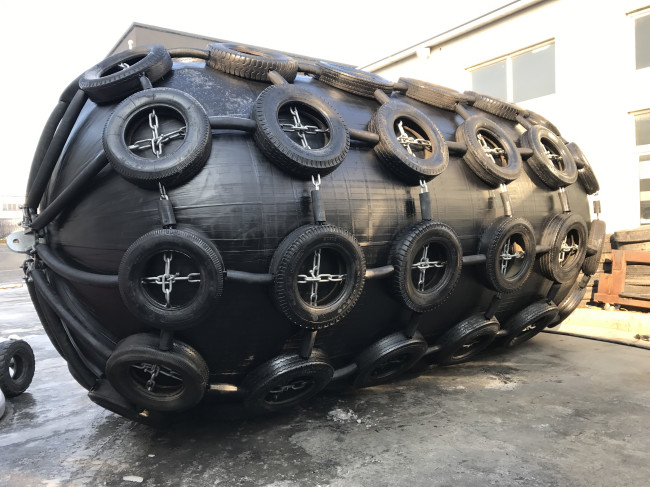

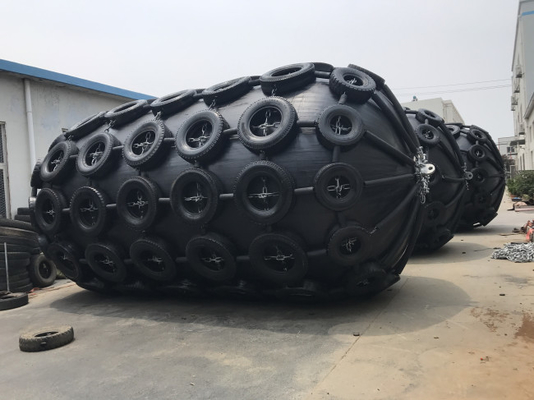

Net type Pneumatic Rubber Fenders With Chain And Tyre Net
The outside chain and tyre net provide the extra protction for the rubber fender body. It can be easlily replaced if the outer chain and tyre net is damaged.
Application:
-- Oil and gas tankers
-- Fast ferries and aluminium vessels
-- Temporary and permanent installations
-- Rapid response and emergencies
FAQ:
Q1: What's your MOQ?
Answer: Our MOQ is 1pc.
Q2: How about the lifespan of your pneumatic rubber fenders?
Answer: Designed lifespan of our pneumatic rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: I have ships but don't know how to choose the pneumatic rubber fenders size and quantity, can you help ?
Answer: Don't worry. We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: CCS,BV,SGS etc.certificate is available
