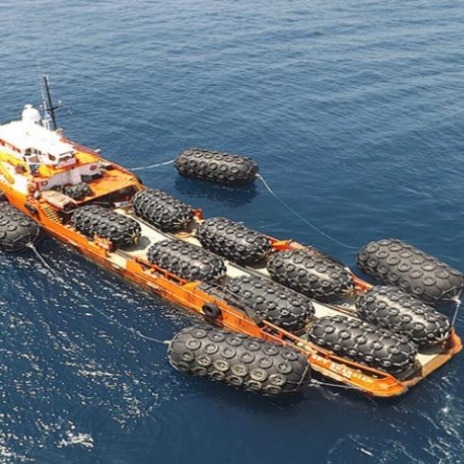

STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender

STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender
STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender

Large Image :  STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ABS, CCS Certificates
Model Number: SH-PRF 14
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 270 to 8900/PC
Packaging Details: pallet package
Delivery Time: within 20 workdays
Payment Terms: T/T, L/C,, Western Union
Supply Ability: 460 tp 500 pcs per month

STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender

Description
Product Name: STD Truck Tyre Net Marine Pneumatic Rubber Fender Size: Customized
Material: Natural Mixed Rubber , Reinforcement Tyre Cord OEM: Available
Initial Internal Pressure: 0.05mpa , 0.08mpa Color: Black
Usage: Protects Ship During Ship-to-ship Operations Or Mooring At Quay Warranty: 2 Years
High Light:

STD pneumatic fenders for ships

,

STD Rubber pneumatic fenders for ships

,

Truck Tyre Net marine dock fender

STD Truck Tyre Net Marine Pneumatic Rubber Fender



Product Introduction



The basic body construction of pneumatic rubber fender consists of an outer layer made of rubber, cord layers and inner rubber layer vulcanised together. End flanges are available at both ends for air charging purposes. The outer rubber layer is made of strong rubber material to withstand external forces and protect the other layers from abrasion as well as hard usage on bad weather conditions. Cord layers are innovatively designed at ideal angles to evenly distribute the stress acting upon the fender. Overall winding technology and the cord layers with high tensile stress are applied to provide strength and hold the internal pressure during usage. This helps distribute the stress uniformly, maintaining the energy absorption and increasing its efficiency. The inner layer is tasked to seal the air inside, minimising the air leakage using a material with airtight qualities.



Advantage of Pneumatic Rubber Fender



Advantages During Inclined Berthing



During berthing, the initial contact with the dock is usually at an oblique angle and that places a lot of pressure on both surfaces (the dock and the ship).

For typical solid rubber fenders, at inclined compression which is usually the case, energy absorption decreases considerably. Therefore, it is not unusual to see solid fenders used are larger in sizes. On the other hand, pneumatic fenders’ energy absorption maintains at a relatively high level despite inclined compression. Due to a more evenly distribution of load pressure, the torque performance against the dock is usually smaller when compared to conventionally designed solid fender systems.



Stronger Against Shearing Force



After making contact with the dock, the vessel is usually slowly moved to the optimum mooring position. This action exerts high shearing force and compression on the surface of fenders. Most solid fenders are severely damaged due to such forces as they are not designed to withstand strong shearing forces and friction that way. However, it depends on the designs/types of solid fenders. For example, MAX frontal pads for solid fenders are designed to tackle this issue and protect the fenders from shearing forces, in which the surface of fenders do not make contact with the ship.



Relatively Safe Even During Excess Load



Generally speaking, all fenders should be used within the impact load limit. However in real life situations, it is common to see that fenders often accidentally receive excess loads. When that happens, the fortunate thing about a pneumatic fender is that the reaction force does not increase sharply under excessive load. In contrast, solid fenders’ reaction forces tend to spike sharply under excessive load conditions and damage the ship during the mooring process. This is also helped by pneumatic type fenders’ characteristic that enables a more uniform distribution of stress.



Advantages During Crucial Weather Conditions



During crucial weather conditions when the wave action is severe, mooring processes are further complicated due to up and down unbalanced action at the quay. This exerts a higher shearing force on the fenders and the frequently change in forces during mooring under such weather conditions will cause fatigue on typical solid type fenders. However on the other hand, pneumatic fender’s flexible contact area and large allowable deflection characteristics minimise fatigue during such situations. In fact, for seas with rough situations or frequent bad weather conditions, pneumatic types may be a better option than solid type fenders as it may display a longer life span.



Deterioration in Performance Minimised



Aging and fatigue often cause fenders to deteriorate in terms of performance. However, due to its air filled body and highly elastic material, such issues are minimised. Solid rubber fenders or foam fenders depend more on the hardness of the material and such dependance may result in decrease in energy absorption performance after years of usage and temperature change. On the other hand, as long as basic maintenance and air pressure control is maintained, pneumatic fenders remain optimum performance even at extremely low temperature down to -50 Degree Celsius or even during high fluctuations.



Tide Adaptation

Pneumatic fenders are primarily floating-types, which means the fenders float on the water in an unrestricted vertical plane corresponding to the tidal range and ship’s vertical movement. Therefore, fender energy absorption always take place at the most optimum position.



Specificaton of Pneumatic Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Notice Of Fender Application And Storage


1. The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.


2. Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.


3. When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender


4. Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.


5. When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.


6. If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.


7. When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.


8. Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution


9. When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.



Pressure Compression Test



STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender 0



STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender 1

STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender 2STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender 3

STD Rubber Pneumatic Fenders For Ships Truck Tyre Net Marine Dock Fender 4
