ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders

Certification
China QINGDAO SHUNHANG MARINE SUPPLIERS CO., LTD. certification
I'm Online Chat Now

ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders

ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders
ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders

Large Image :  ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: ISO9001, CCS
Model Number: SH-PRF 13
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 270 to 9000/PC
Packaging Details: Nude cargo
Delivery Time: 5 to 21 workdays
Payment Terms: Western Union ,, T/T- 30% in advance, 70% before delivery
Supply Ability: 400 pcs per month

ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders

Description
Product Name: ISO17357: 2014 Ship To Ship Transposting Pneumatic Rubber Fenders Initial Internal Pressure: 0.05mpa, 0.08mpa
Outer Material: Natural Mixed Rubber Inner Material: Natural Mixed Rubber
Reinforcement Layer: Rubber Dipped Tyre Cord Fabric Diameter: 500 To 3700mm
Length: 1000 To 9000mm Inflate Accessories: Inflate Tool, Pressure Gauge
High Light:

0.08mpa pneumatic marine fenders

,

0.05mpa Ship Transporting pneumatic marine fenders

,

0.08mpa Rubber inflatable dock fenders

ISO17357: 2014 Ship To Ship Transposting Pneumatic Rubber Fenders



Advantage of Shunhang Pneumatic Rubber Fenders



1. Shunhangpneumatic rubber fenders are designed, manufactured according to ISO17357



2. Technology : Overall winding , Anti high pressure, Explosion proof
Our pneumatic rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.



3. Raw material of our pneumatic rubber fender : Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our pneumatic rubber fender are also used in Canada ,Russia etc. After six months, customers’ feedback is our pneumatic rubber fenders are still perform well, there’s no obvious change on the surface.

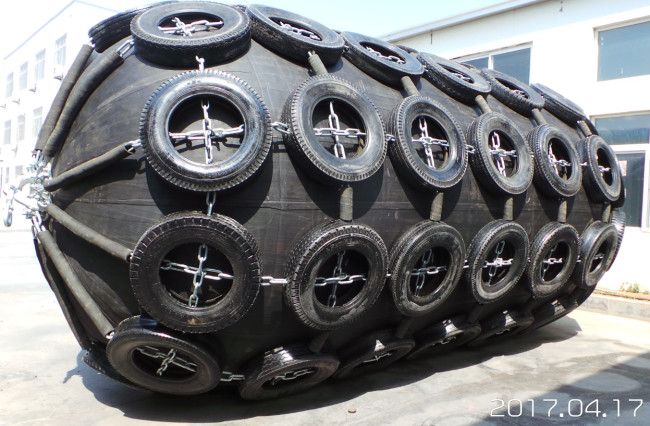

4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre, OTR tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.



5. Designed of our pneumatic rubber fender is 6 to 10 years


6. Our warranty period is 24 monthes.



Specificaton of Pneumatic Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Features of Pneumatic Rubber Fender



1. Guaranteed energy absorption



2. Chain tyre net and sling type



3. Thick skin construction



4. Good angular performance



5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).



6. No reduction on the performance of compression when inclined.



7. Suitable for areas with large or small tides.



8. Suitable in cold weather because the compressed air as buffering medium.



9. Especially in mooring of large scale ships in sea docks and lightering.



10. Maintains large clearances between hull and structure



Outer and Inner Rubber Material Requirements of Pneumatic Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Notice Of Fender Application And Storage


1. The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.


2. Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.


3. When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender


4. Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.


5. When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.


6. If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.


7. When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.


8. Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution


9. When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.



ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders 0ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders 1

ISO17357 Pneumatic Marine Fenders Ship Transporting Rubber Inflatable Dock Fenders 2



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our pnaumatic rubber fender is 1pc.



Q2: What's the lifespan of your pneumatic rubber fenders?

Answer: Designed lifespan of our pneumatic rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you suggest the suitable pneumatic rubber fenders size and quantity for me?

Answer: Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ISO9001, BV, CCS etc.certificate is available
