Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber

Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber
Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber

Large Image :  Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: CCS, ISO9001
Model Number: SH-PF3
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 310 to 9000/PC
Packaging Details: Pallet
Delivery Time: 5 to 25 workdays
Payment Terms: T/T, 30% in advance, 70% paid before delivery
Supply Ability: 210 pcs per month

Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber

Description
Product Name: Aircraft Tyre Chain TYre Net Marine Rubber Pneumatic Fenders Initial Internal Pressure: 50kpa, 80kpa
Diameter: 30mm To 3700mm Length: 500mm To 10000m
Material: Natural Rubber , Reinforcement Cord Layers Net: Chain And Tyre Net
OEM: Available Business Type: Manufacturer, Factory
High Light:

500mm Aircraft Tyre floating fender yokohama

,

Chain TYre Net floating fender yokohama

,

500mm Pneumatic yokohama fender dimensions

Aircraft Tyre Chain TYre Net Marine Rubber Pneumatic Fenders





Product Introduction:



Rubber pneumatic fender is also known as pneumatic rubber fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's rubber pneumatic rubber fenders used special technilogy and material, makes it to have better performance  .



Initial Internal Pressures Are Defined As Follows:
1. Pneumatic 50 (initial internal pressure 50 kPa);
2. Pneumatic 80 (initial internal pressure 80 kPa).



Rubber Pneumatic Fender Types Are Defined As Follows:
1. Type I — Net-type;
2. Type I Single — Net-type and one end with no flange opening and no metal parts.
3. Type II — Sling-type.



Type Requirements:

1. Type I and Type I Single (Net-type) fenders shall be covered by a chain net, wire net, or fibre net. Each end of longitudinal chains, wires, or fibres shall be linked together with one or two ring(s), which shall be connected with a guy-chain or guy-rope. Usually, these nets will be fitted with used tyres or rubber sleeves to provide additional protection to the fender body.

2. Type II (Sling-type) fenders shall have a lifting device on each end, which shall be connected with a guy-chain or guy-rope.



Specificaton of Rubber Pneumatic Fender:

Initial internal pressure : 50kPa or 80kPa.



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961





Feature of Shunhang Rubber Pneumatic Fender:



1. Shunhang rubber pneumatic fenders are designed, manufactured according to ISO17357


2. Technology : Overall winding , Anti high pressure, Explosion proof

Our pneumatic rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.



3. Raw material of our rubber pneumatic fender

Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, rubber ( Some factory use Nylon with less tensile force , and reclaimed rubber ) .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our pneumatic rubber fender are also used in Canada ,Russia etc. After six months, customers’ feedback is our rubber pneumatic fenders are still perform well, there’s no obvious change on the surface.



4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre, OTR tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.



5. Designed of our rubber pneumatic fender is 6 to 10 years



6. Our warranty period is 2 years.

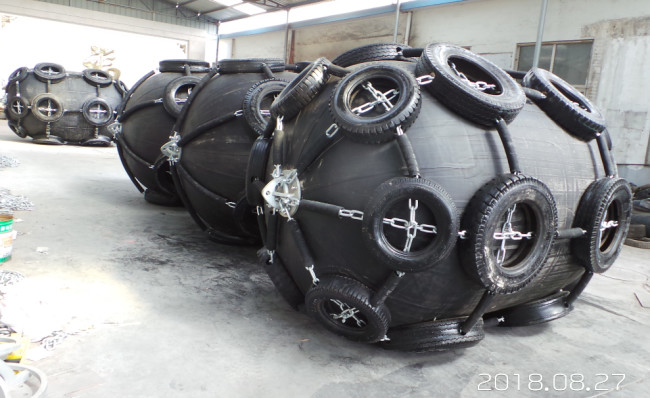

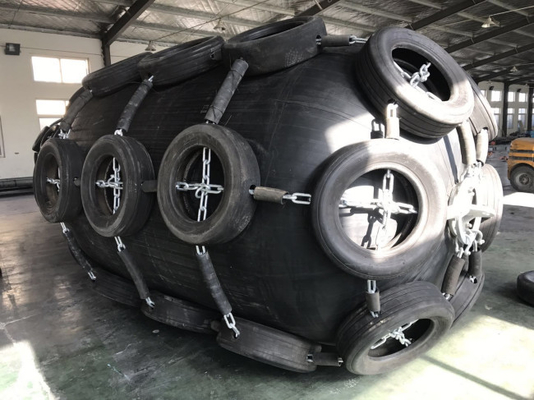

Shunhang Rubber Pneumatic Fender



Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber 0



Fenders Compression Test



Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber 1Aircraft Tyre Floating Fender Yokohama Chain TYre Net Pneumatic Natural Rubber 2



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our rubber pneumatic fender is 1pc.



Q2: What's the lifespan of your rubber pneumatic fenders?

Answer: Designed lifespan of our rubber pneumatic fenders is 8 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you suggest the suitable rubber pneumatic fenders size and quantity for me?

Answer:  Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ABS,CCS,BV,SGS etc.certificate is available
