Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection

Certification
China QINGDAO SHUNHANG MARINE SUPPLIERS CO., LTD. certification
I'm Online Chat Now

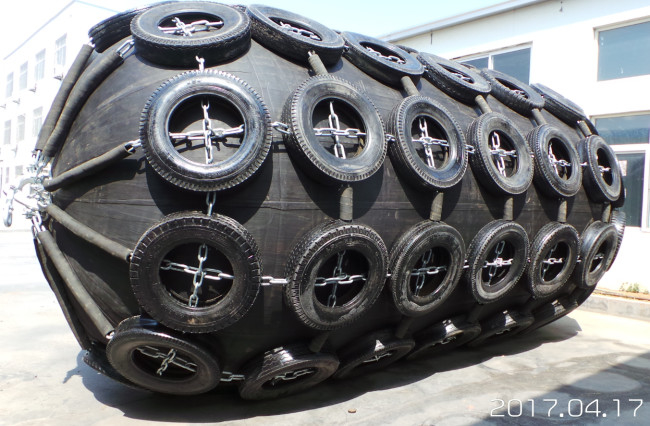

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection
Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection

Large Image :  Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: CCS, SGS, BV, ISO9001
Model Number: SH-PRF-21
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 300 to 5700/PC
Packaging Details: pallet package
Delivery Time: within 20 working days
Payment Terms: T/T-30% in advance, 70% to be paid before delivery., Western Union
Supply Ability: 500 pcs per month

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection

Description
Product Name: Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection Fender Sizes: Customized Sizes
Initial Internal Pressure: 50kpa, 80kpa Standard: ISO17357-2014
Color Available: Black Inflate Accessories: Inflatable Tool, Pressure Gauge
Advantage: Experienced Manufacturer OEM: Available
High Light:

Yokohama Inflatable Rubber Fenders

,

Offshore Ocean Platform Inflatable Rubber Fenders

,

80kpa Ship Protection Pneumatic Rubber Fender

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection



Product Introduction



The inflatable rubber fender is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 0



Advantage of Shunhang Inflatable Rubber Fender



1. Shunhang inflatable rubber fenders are designed, manufactured according to ISO17357: 2014



2. Technology : Overall winding , Anti high pressure, Explosion proof
Our inflatable rubber fenders can bear the pressure 1.5 times than the ordinary technology overlap joint technology.



3. Raw material of our inflatable rubber fender : Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber, .All the rubber we use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the performance of our rubber , the aging of rubber has been greatly improved now. Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our inflatable rubber fenders are also used in Canada ,Russia etc. After six months, customers’ feedback is our inflatable rubber fenders are still perform well, there’s no obvious change on the surface.



4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain according to customer’s request
Tyre- we have truck tyre and aircraft tyre according to customer’s request.
All the chain and tyre nets fitted with appropriate shackles , swivel and rubber sleeve etc.



5. Designed of our inflatable rubber fender is 6 to 10 years


6. Our warranty period is 24 monthes.





Characteristic



●  External wear resistance ● Bearing pressure



●  Ageing resistance ● Long service life



●  Good air tightness ● Easy storage



●  Non deformation ● Simple installation



Specificaton of Inflatable Rubber Fender



Size Initial Internal Pressure 50kPa Initial Internal Pressure 80kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961



Outer and Inner Rubber Material Requirements of Inflatable Rubber Fenders





Test item



Test method

Required value
Outer rubber Inner rubber
1. Before aging
1.1 Tensile strength ISO 37:2011 18 MPa or more 10 MPa or more
1.2 Elongation ISO 37:2011 400 % or more 400 % or more
1.3 Hardness ISO 7619-1:2010

60 ± 10 (Durometer hardness

Type A)

50 ± 10 (Durometer hardness

Type A)



2. After aging



ISO 188:2011

Air oven aging, 70°C ± 1°C,

96 h

Air oven aging, 70°C ± 1°C,

96 h

2.1 Tensile strength ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.2 Elongation ISO 37:2011

Not less than 80 % of the original

property

Not less than 80 % of the origi-

nal property

2.3 Hardness ISO 7619-1:2010

Not to exceed the original prop-

erty by more than 8

Not to exceed the original prop-

erty by more than 8

3. Tear ISO 34-1:2010 400 N/cm or more No requirement
4. Compression set ISO 815-1:2008 30 %(70 ± 1 °C, 22hours) or less No requirement

5. Static ozone aging

test



ISO 1431-1:2012

No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h



No requirement

NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table.

a Parts of ozone per hundred million of air by volume.





Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 1



Installation and Application of Yokohama Rubber Fenders

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 2Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 3

Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 4Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 5



FAQ:



Q1: What's your MOQ?

Answer: The MOQ of our Yokohama rubber fender is 1pc.



Q2: What's the lifespan of your Yokohama rubber fenders?

Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: Can you recommend the suitable Yokohama rubber fenders for me?

Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: ISO9001 ABS, CCS, SGS, BV, etc.certificate is available





Offshore Ocean Platform Yokohama Inflatable Rubber Fenders For Ship Protection 6
