ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat

Certification
China QINGDAO SHUNHANG MARINE SUPPLIERS CO., LTD. certification
I'm Online Chat Now

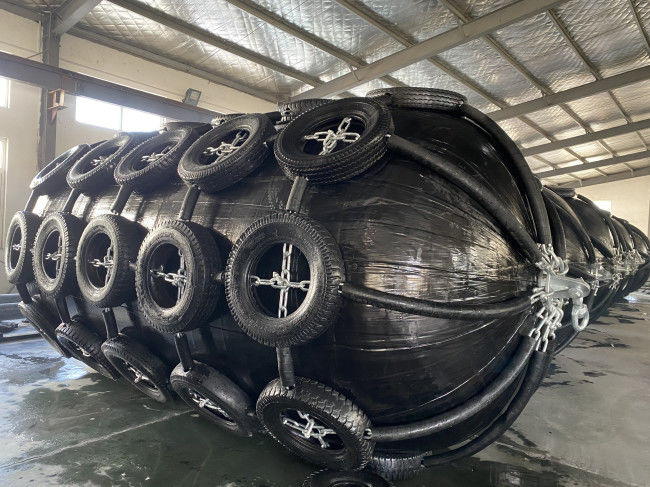

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat
ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat

Large Image :  ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat

Product Details:
Place of Origin: China
Brand Name: Shunhang
Certification: CCS, BV, ABS, ISO 9001
Model Number: SH-F2
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 610 to 2600/PC
Packaging Details: Pallet
Delivery Time: 20 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per month

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat

Description
Product Name: Pneumatic Rubber Fender Initial Internal Pressure: 50kpa, 80kpa
Material: Rubber , Reinforcement Layers Standard: ISO17357 : 2014-1
Size: According To Customers' Request Inflate Accessories: Free
LifeSpan: 8 Years Application: Marine And Boat
High Light:

ISO17357 Pneumatic Rubber Fender

,

Marine Pneumatic Rubber Fender

,

ISO17357 inflatable marine fender

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat





Product Introduction:



Pneumatic Rubber Fender is Designed for sealing and blocking sewers, drainage systems, pipelines, and gullies in which the backpressure exceeds the range of standard stoppers.



1. Outer rubber
Rubber layer that covers the outside of the fender to protect the cord layers and the inner liner rubber from abrasion and other external forces

2. Inner rubber
Liner of a rubber membrane that seals the pressurized air inside the fender


3. Synthetic-tyre-cord layer for reinforcement
Layer made of synthetic-tyre-cord fabric, which maintains the internal air pressure of the fender
Note 1 to entry: As the main fibres of the synthetic-tyre-cord fabric are not braided like synthetic canvas fabric or synthetic belt fabric, there are advantages for its fatigue-resistance performance and pressure-holding performance. .



4. Flange opening
Steel flange which is mounted on the fender, to which an air valve or safety valve can be adapted

5. Guaranteed energy absorption
Energy that the fender can absorb without permanent deformation or failure

6. Reaction force
Force produced by a fender reacting to a compressive force
Note : It is equal to the force of the air pressure of the fender multiplied by the contact area of the fender to the ship or berthing structure.



Specificaton of Pneumatic Rubber Fender:

Initial internal pressure : 50kPa or 80kPa.



Size Initial Internal Pressure 50kPa Initial Internal Pressure 50kPa

Diameter/

Meter

Length

/Meter

Energy Absorption /KJ Reaction Force /KN Energy Absorption /KJ Reaction Force /KN
0.5 1 6 64 8 85
0.7 1.5 17 137 24 180
1.0 1.5 32 182 45 239
1.0 2.0 45 257 63 338
1.2 2.0 63 297 88 390
1.5 3.0 153 579 214 761
1.7 3.0 191 639 267 840
2.0 3.5 308 875 430 1150
2.5 4.0 663 1381 925 1815
2.5 5.5 943 2019 1317 2653
3.0 5.0 1050 2000 1571 2709
3.0 6.0 1312 2488 1888 3292
3.3 4.5 1175 1884 1640 2476
3.3 6.0 1675 2783 2338 3652
3.3 6.5 1814 3015 2532 3961





Application:



-- Oil and gas tankers

-- Fast ferries and aluminium vessels

-- Temporary and permanent installations

-- Rapid response and emergencies

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat 0

ISO17357 Standard Pneumatic Rubber Fender For Marine And Boat 1









FAQ:



Q1: What's your MOQ?

Answer: Our MOQ is 1pc.



Q2: What's the lifespan of your pneumatic rubber fenders?

Answer: Designed lifespan of our pneumatic rubber fenders is 6 to 10 years



Q3: What's your warranty period?

Answer: Our warranty period is 24 monthes. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.



Q4: I have ships but don't know how to choose the pneumatic rubber fenders size and quantity, can you help ?

Answer: Don't worry. We have more than 20 years' experience. Pls tell us your ship information, we can suggest suitable size and quantity for you.



Q5: What kind certificate you can provide.

Answer: CCS,BV,SGS etc.certificate is available
